• Wheels, 17" (43.2 cm) painted steel includes painted center caps and a steel spare (spare wheel will not cosmetically match the other 6 wheels) Spare not included with (ZW9) pickup box delete unless a spare tire is ordered (Requires (9F6) 12,800 lbs. GVWR or (CHX) 13,025 lbs. GVWR (dual rear wheel).)
• Tires, LT235/80R17E all-season highway, blackwall (Requires (9F6) 12,800 lbs. GVWR or (CHX) 13,025 lbs. GVWR (dual rear wheel). Includes 7 tires with (E63) Fleetside pickup box. Includes 6 tires with (ZW9) pickup box delete.)
• Recovery hooks, front, frame-mounted
• Tire carrier, outside spare, winch-type mounted under frame at rear (Orders with (ZW9) Pickup box delete will not include a Spare Tire Carrier unless a spare tire is ordered.)
• Spare tire lock keyed cylinder lock that utilizes same key as ignition and door (Not included when (ZW9) pickup box delete or (VF7) rear bumper delete is ordered.)
• Bumper, front chrome

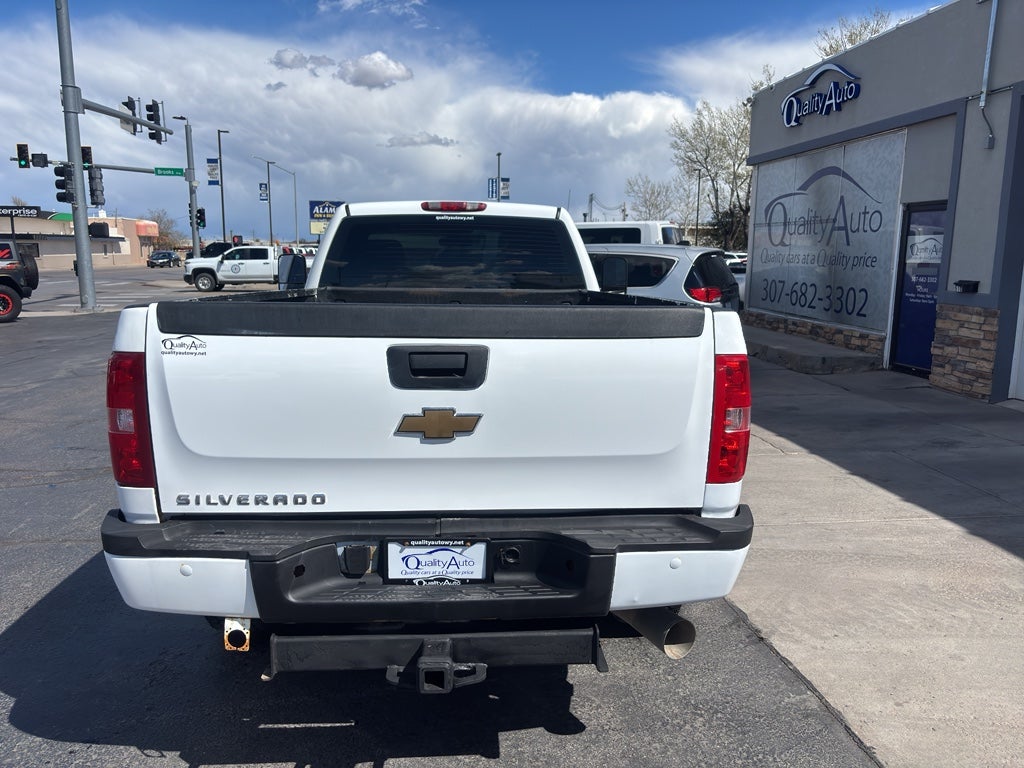

• Bumper, rear chrome, step-style with pad (Not available with (ZW9) pickup box delete)
• Grille, chrome surround
• Headlamps, dual halogen composite with automatic exterior lamp control and flash-to-pass feature
• Lamps, dual cargo area lamps
• Mirrors, outside high-visibility vertical camper-style, Black with manual folding and extension and lower convex spotter glass
• Glass, Solar-Ray light-tinted, all windows
• Wipers, front intermittent wet-arm with pulse washers
• Door handles, Black

• Audio system, AM/FM stereo with seek-and-scan and digital clock (Not available with (U2K) SiriusXM Satellite Radio)
• SiriusXM Satellite Radio, delete
• Audio system feature, 4-speaker system (Requires Regular Cab models)

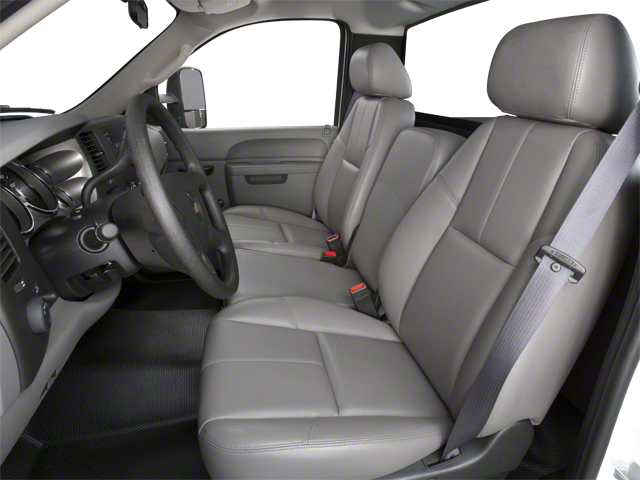

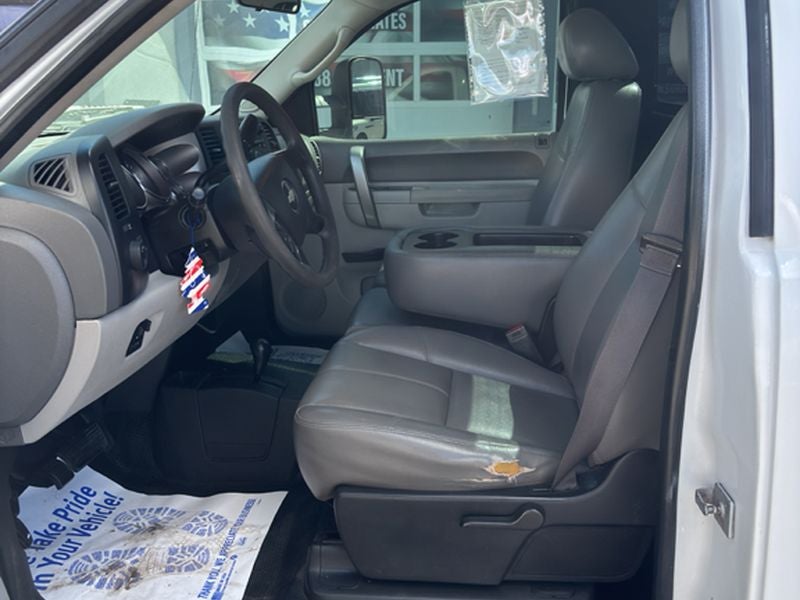

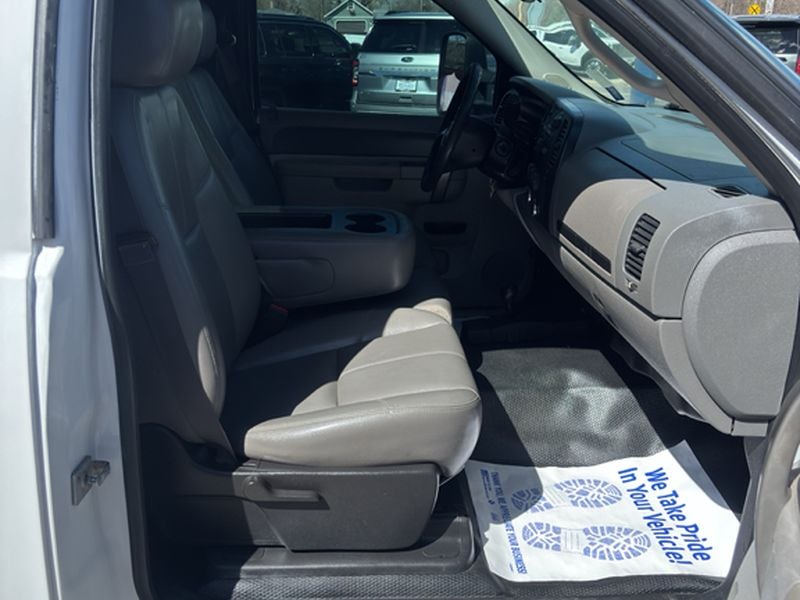

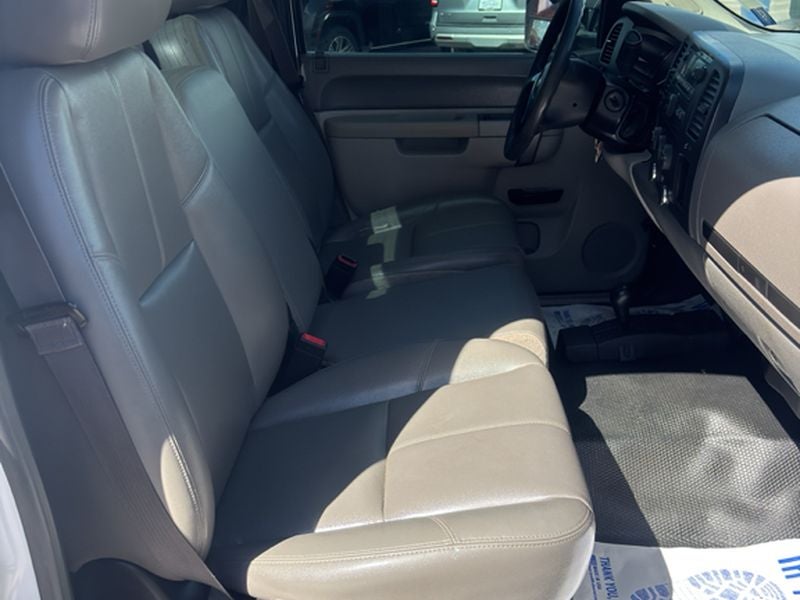

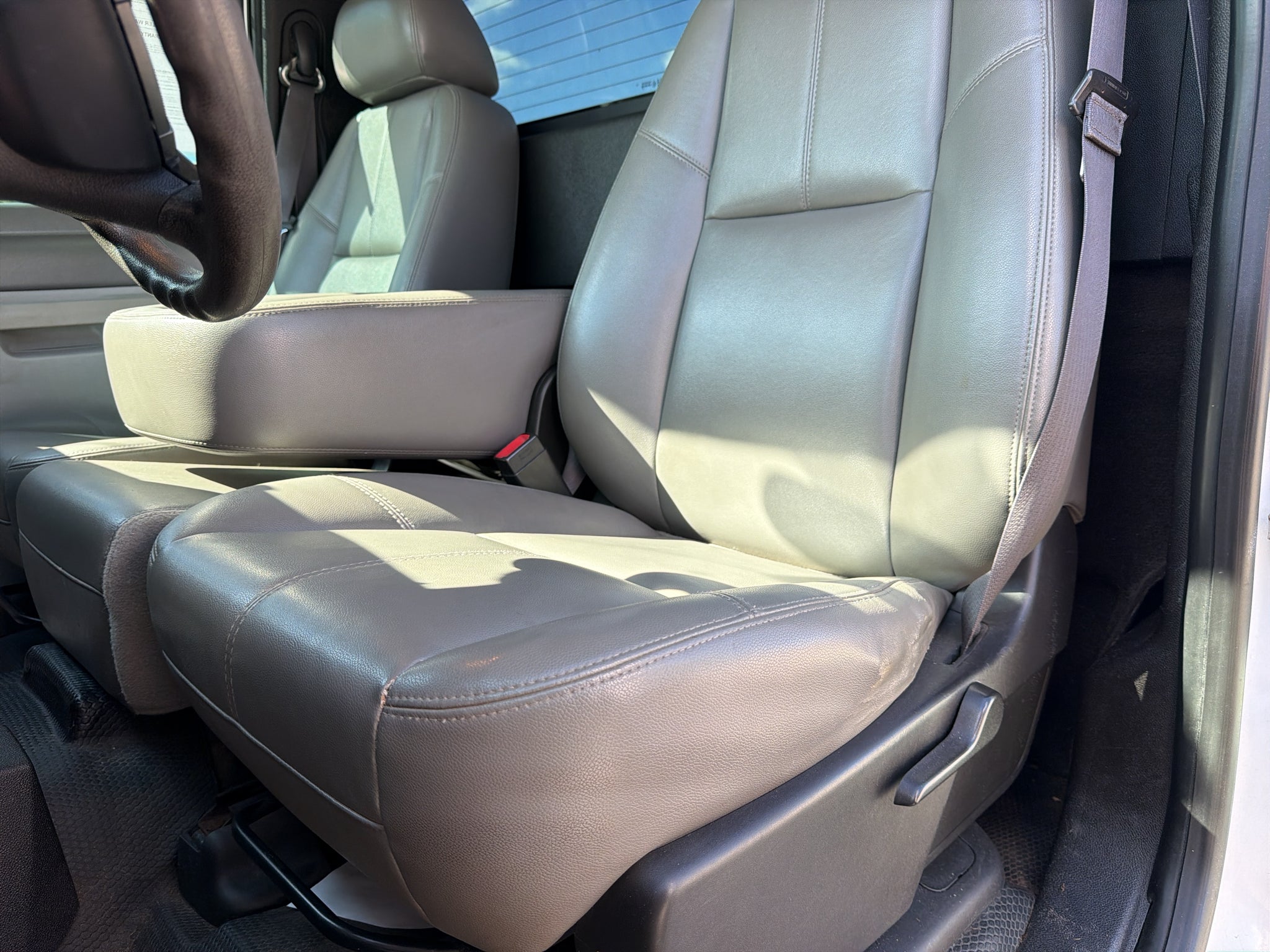

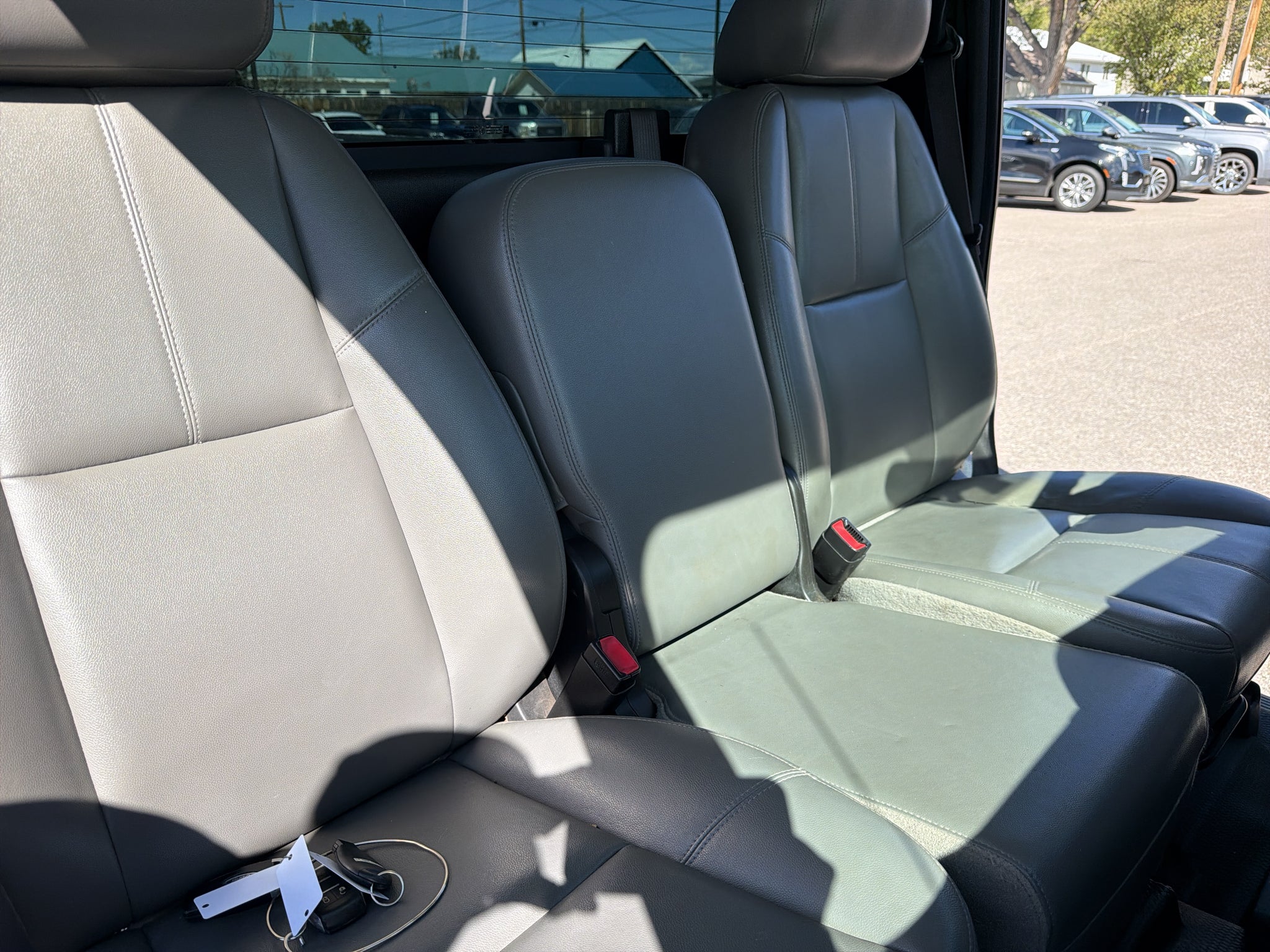

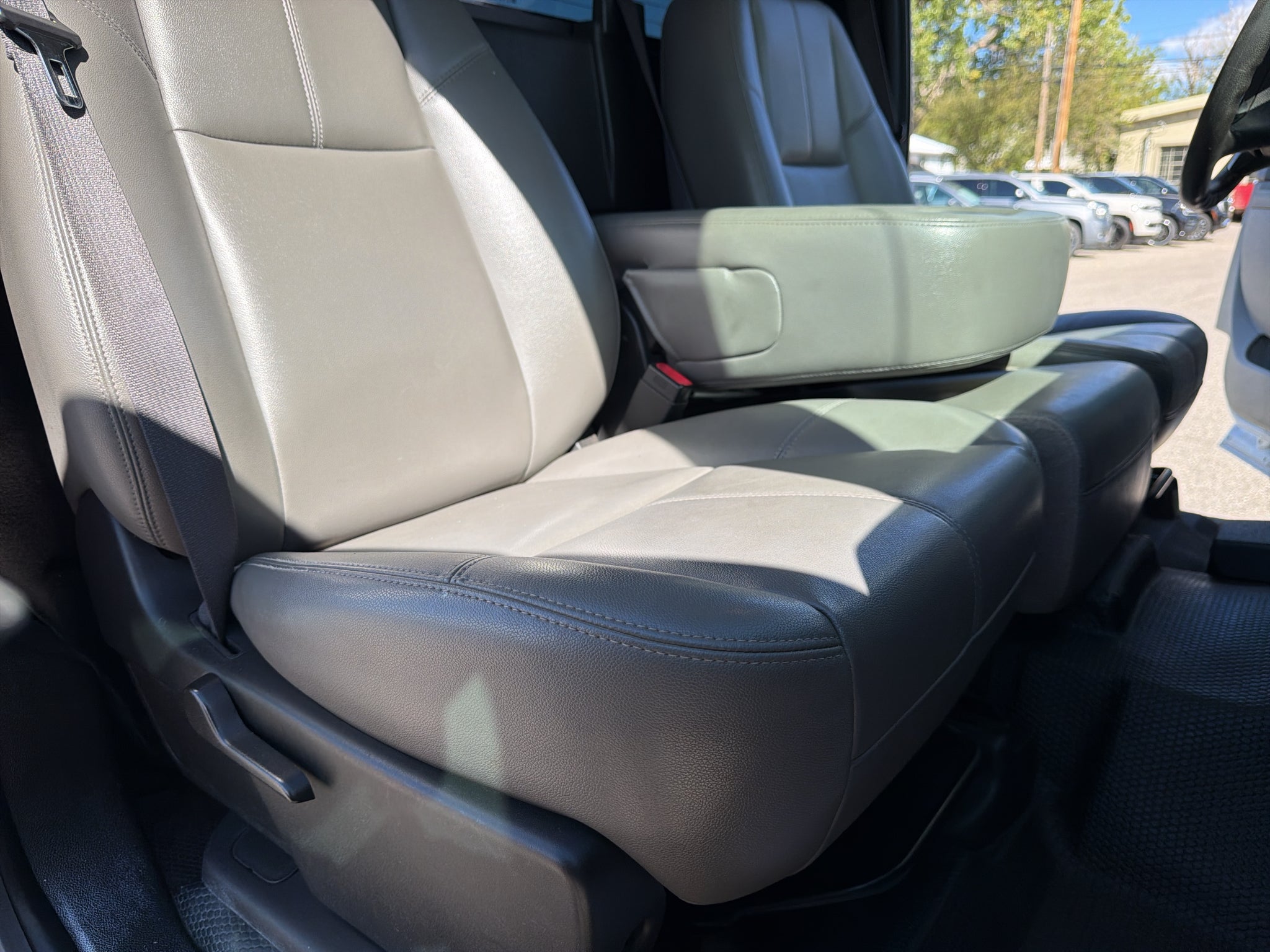

• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger manual reclining with outboard head restraints and center fold-down armrest with storage
• Seat trim, Vinyl (Vinyl seats require (BG9) Black rubberized vinyl floor covering.)
• Floor covering, Black rubberized vinyl
• Steering wheel includes theft-deterrent locking feature
• Warning tones headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on
• Cruise control, electronic with set and resume speed, located on steering wheel
• Air conditioning, single-zone manual front climate control

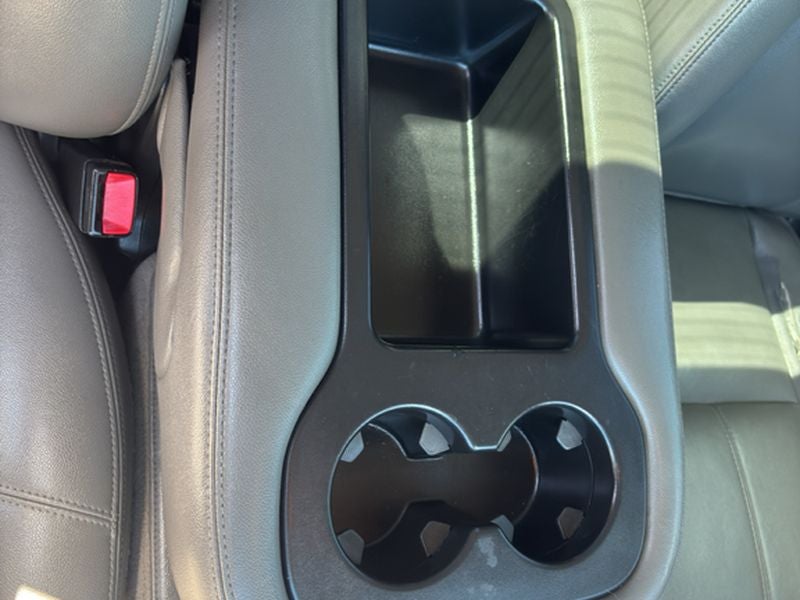

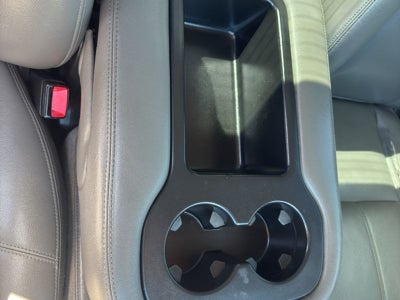

• Cup holders, front (Also includes rear cupholders on Extended and Crew Cab models. Rear cupholders are not included with (AE7) front 40/20/40 split-bench seat.)
• Power outlets 2 auxiliary instrument panel-mounted with covers, 12-volt
• Mirror, inside rearview manual day/night
• Visors, driver and front passenger, sliding with clip and passenger side vanity mirror with cover, Opal Gray-colored
• Assist handle, front passenger (Also includes rear assist handles in the headliner on Extended and Crew Cab models)

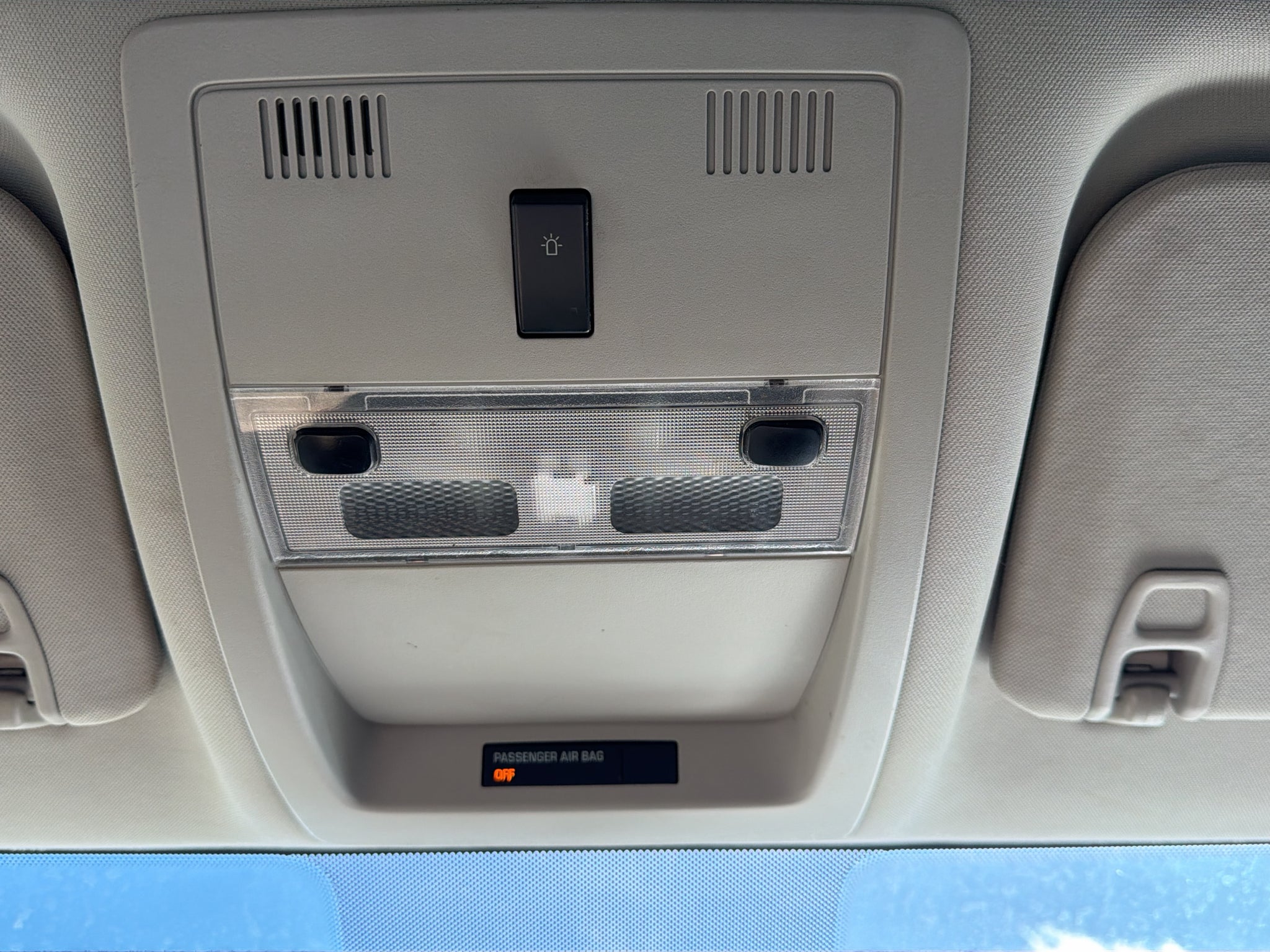

• Lighting, interior with dome and reading lights, illuminated entry feature and backlit instrument panel switches
• Coat hooks, rear driver and passenger side

• Daytime Running Lamps with automatic exterior lamp control
• Air bags, frontal, driver and right-front passenger (Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. See the Owner's Manual and child safety seat instructions for more safety information.)
• OnStar, delete

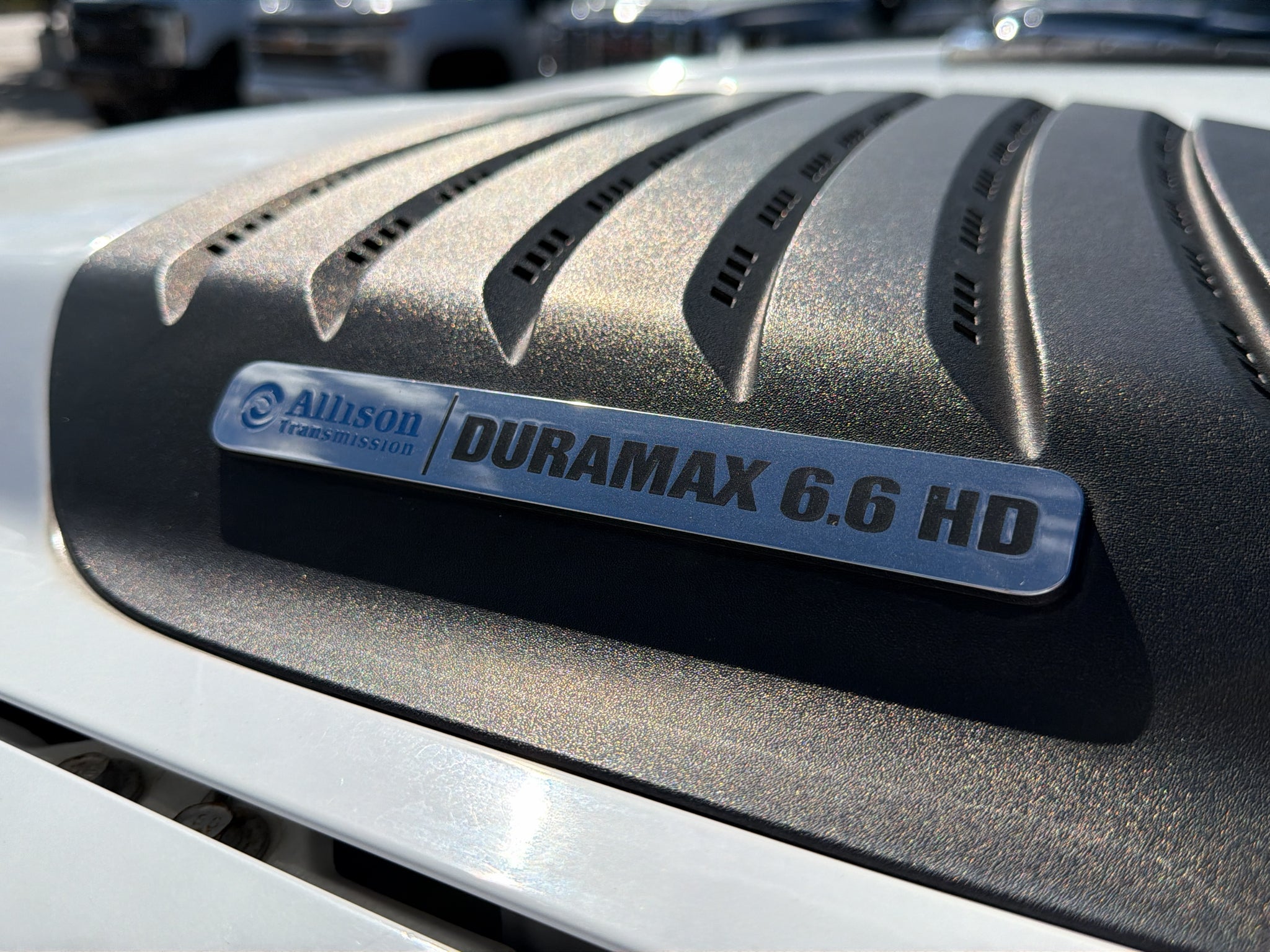

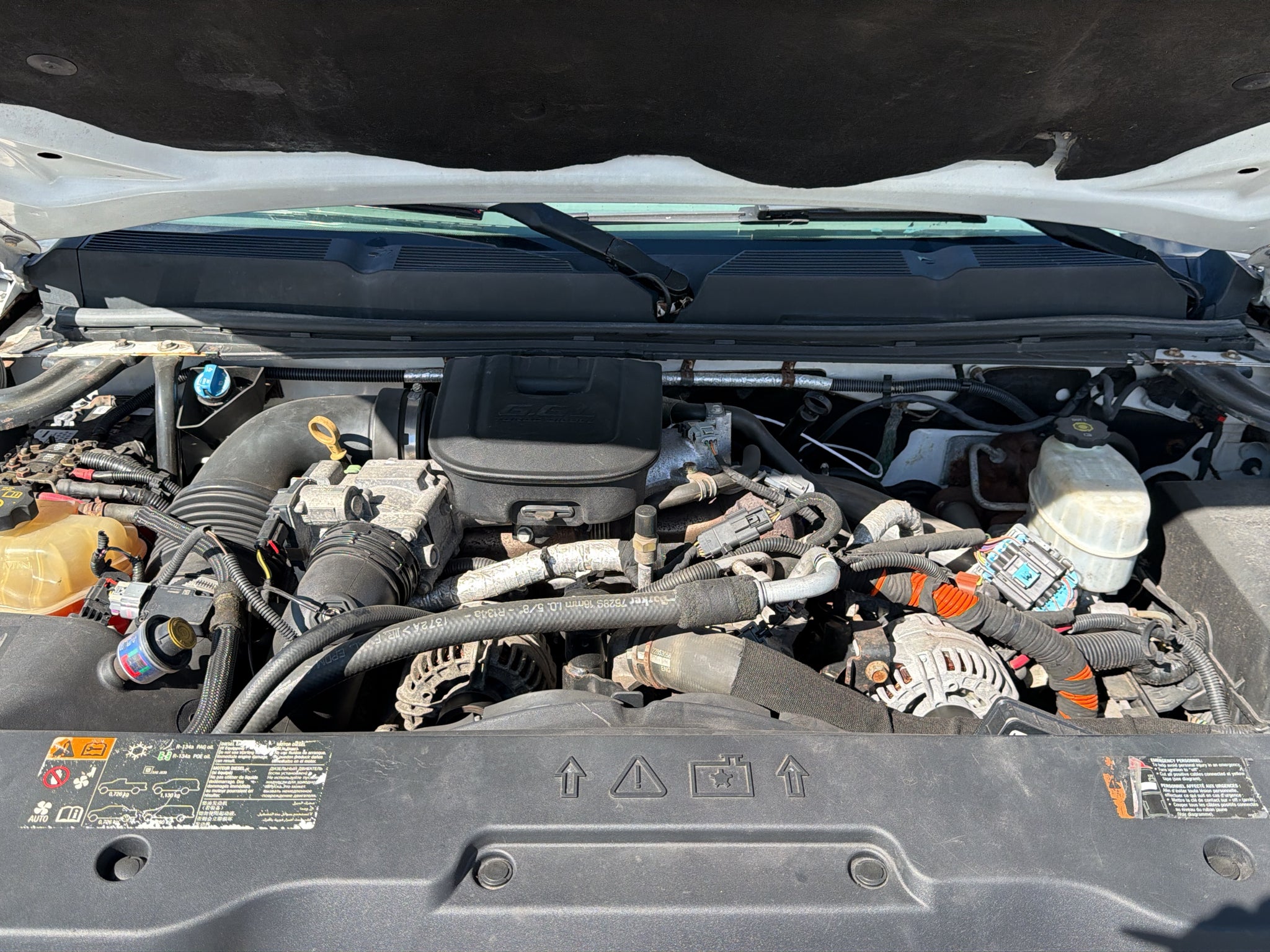

ENGINE, DURAMAX 6.6L TURBO DIESEL V8, B20-DIESEL COMPATIBLE

• (397 hp [296.0 kW] @ 3000 rpm
• 765 lb-ft of torque [1032.8 N-m] @ 1600 rpm) Includes (K40) exhaust brake
• (TUV) heavy-duty dual
• 730 cold-cranking-amp battery and (K05) engine block heater.

• Turbo Diesel Engine
• Towing/Camper Pkg
• Work Truck Pkg.
• Heated Exterior Mirrors
• Power Adjustable Mirrors
• Snow Plow Pkg./Plow
• V8; Turbo Diesel; 6.6L
• Automatic; 6-Spd Allison w/Overdrive
• 4WD
• Tool Box
• ABS (4-Wheel)
• Anti-Theft System
• Keyless Entry
• Air Conditioning
• Power Door Locks
• Cruise Control
• Power Steering
• Tilt Wheel
• AM/FM Stereo
• Dual Air Bags
• Daytime Running Lights
• Towing Pkg
• Steel Wheels
• CD/MP3 (Single Disc)

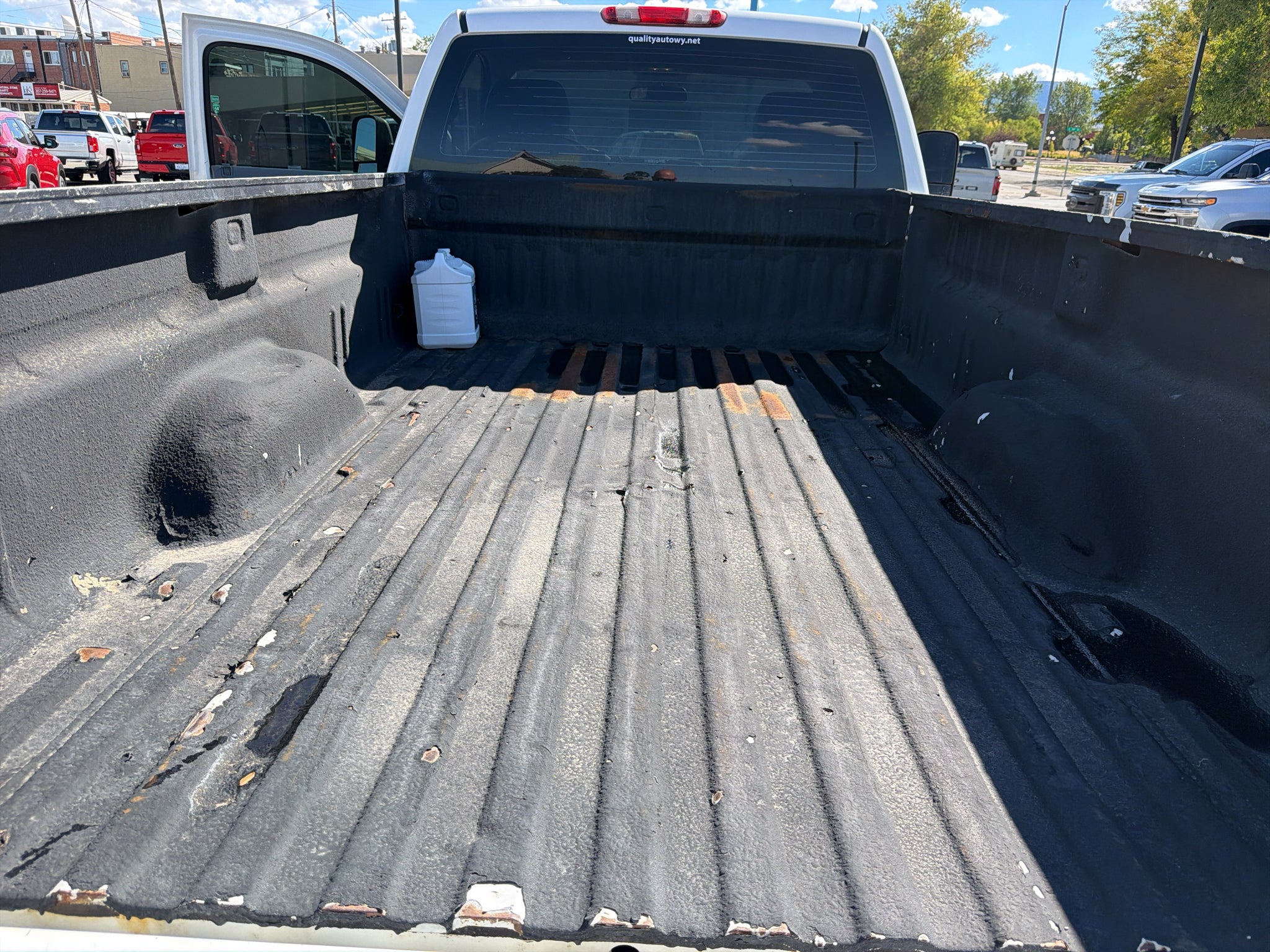

• Bed Liner
• Oversized Premium Wheels 20"+
• White
• Preferred Equipment Group 1WT
• Snow Plow Prep Package: Provision For Cab Roof-Mounted Lamp/beacon; Dual 125-Amp Alternators; Skid Plate Package
• SEO: Power Windows
• Power Door Locks
• Spare LT265/70R18E AS BW Tire
• SEO: Manual Extendable Heated Camper Mirrors
• SEO: Remote Keyless Entry

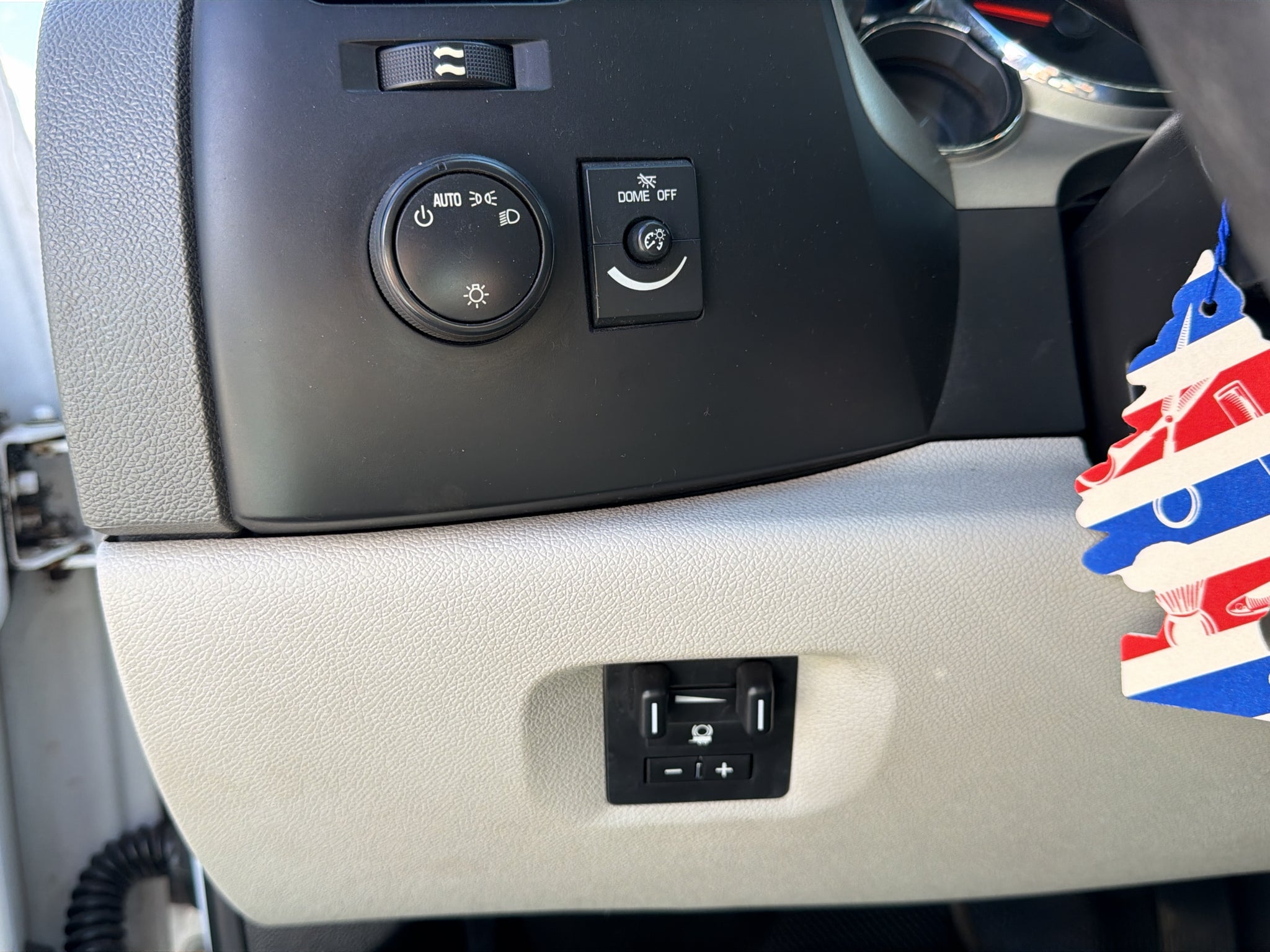

• Integrated Trailer Brake Controller
• High Idle Switch
• Rear-Window Electric Defogger

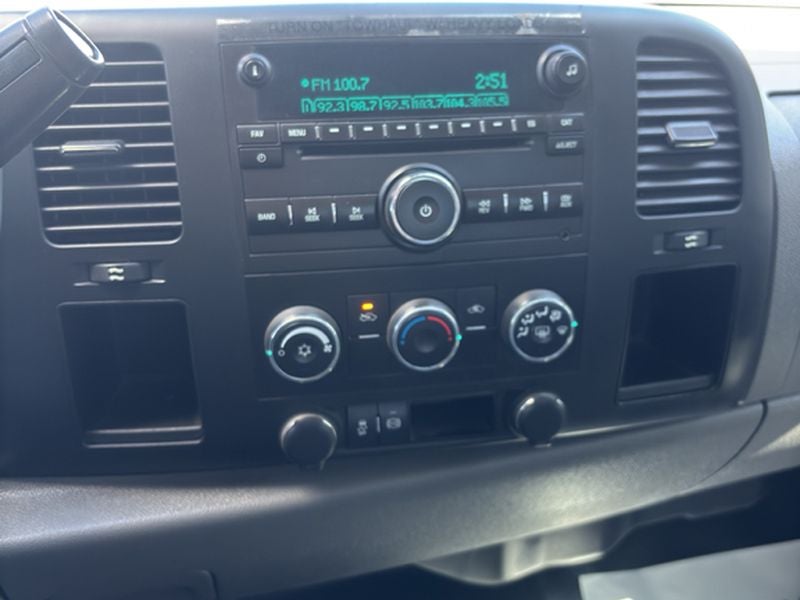

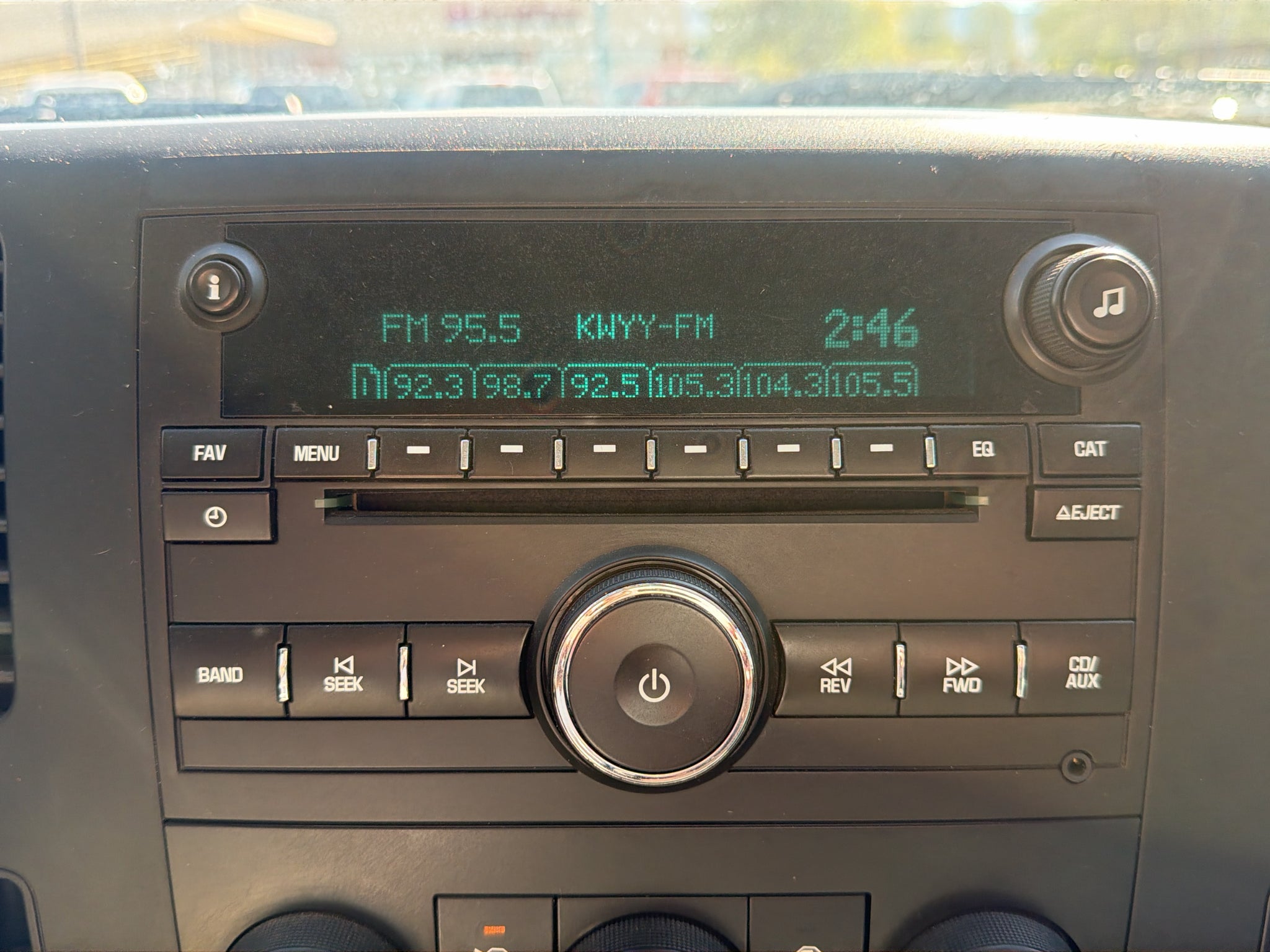

• AM/FM Stereo with MP3 Compatible CD Player
• Skid Plate Package
• Provision For Cab Roof-Mounted Lamp/beacon
• Brake assist system

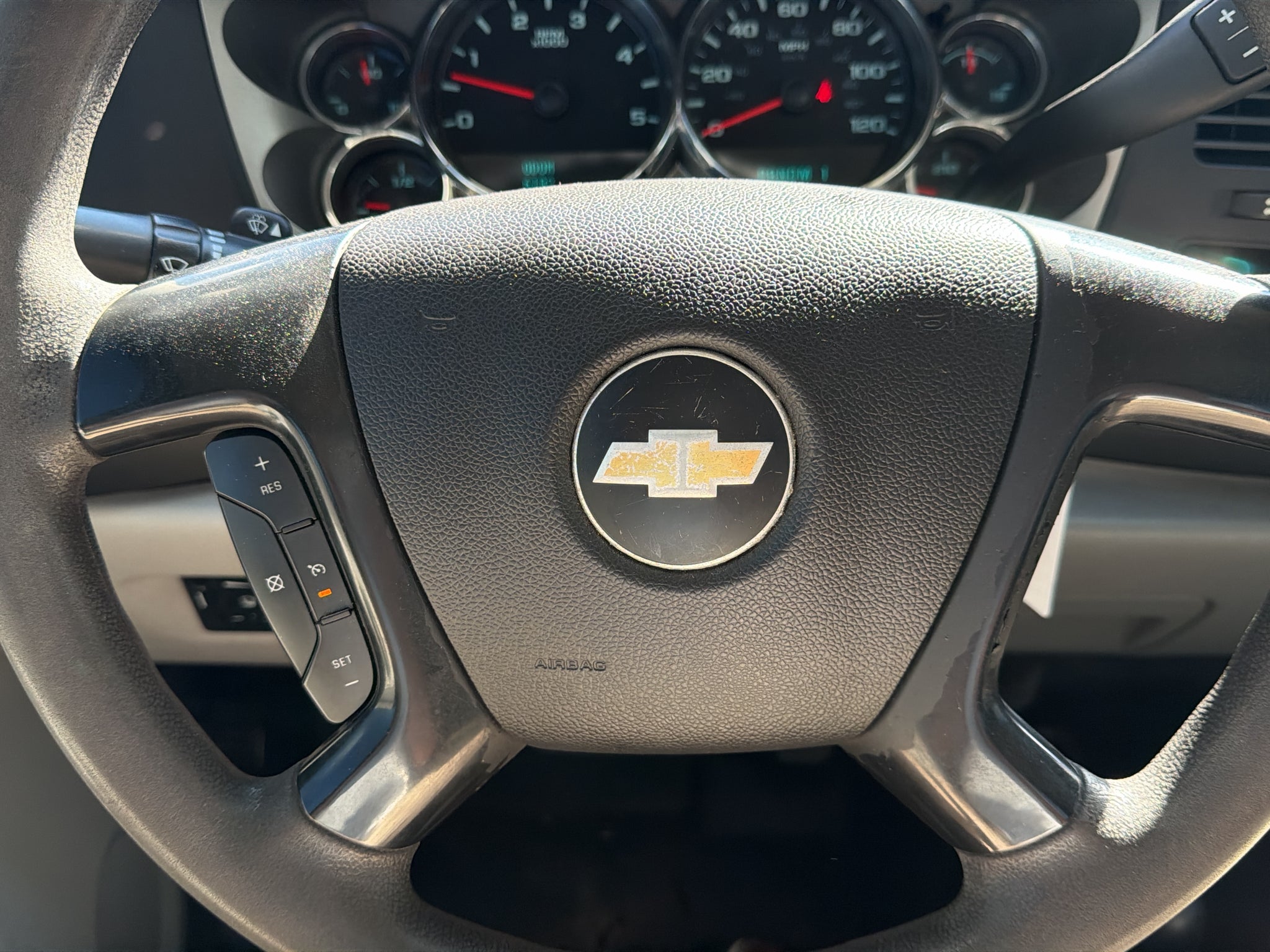

• Cruise control with steering wheel mounted controls

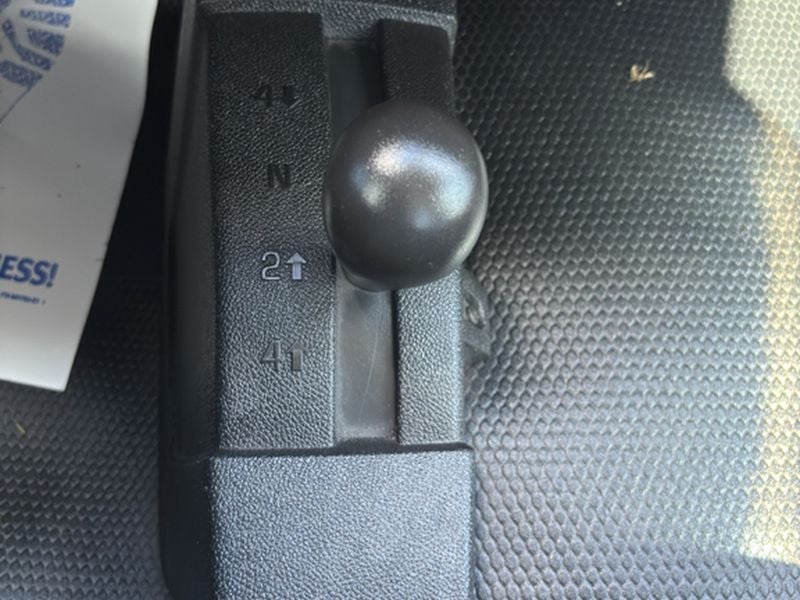

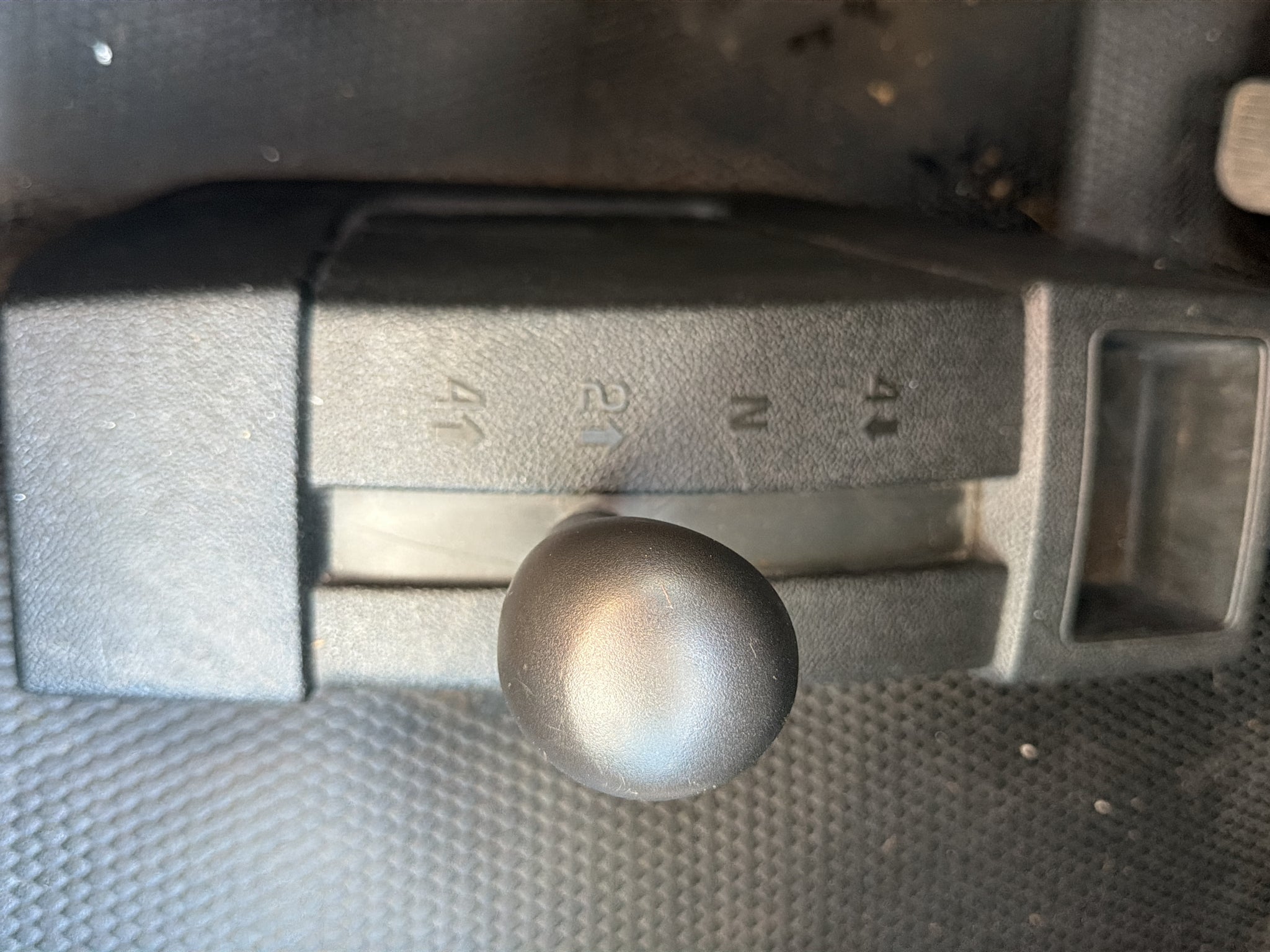

• Part-time 4WD
• Duramax 6.6L V-8 direct injection
• intercooled turbo
• diesel
• engine with 397HP
• Duramax 6.6L V-8
• Mechanical
• Immobilizer
• Trailer brake controller
• Trailer sway control
• StabiliTrak w/Proactive Roll Avoidance electronic stability control system with anti-roll
• Hill start assist
• Heated driver and passenger side door mirrors
• Manual tilting steering wheel
• Wheel hub covers
• 18 x 8-inch front and rear painted steel wheels

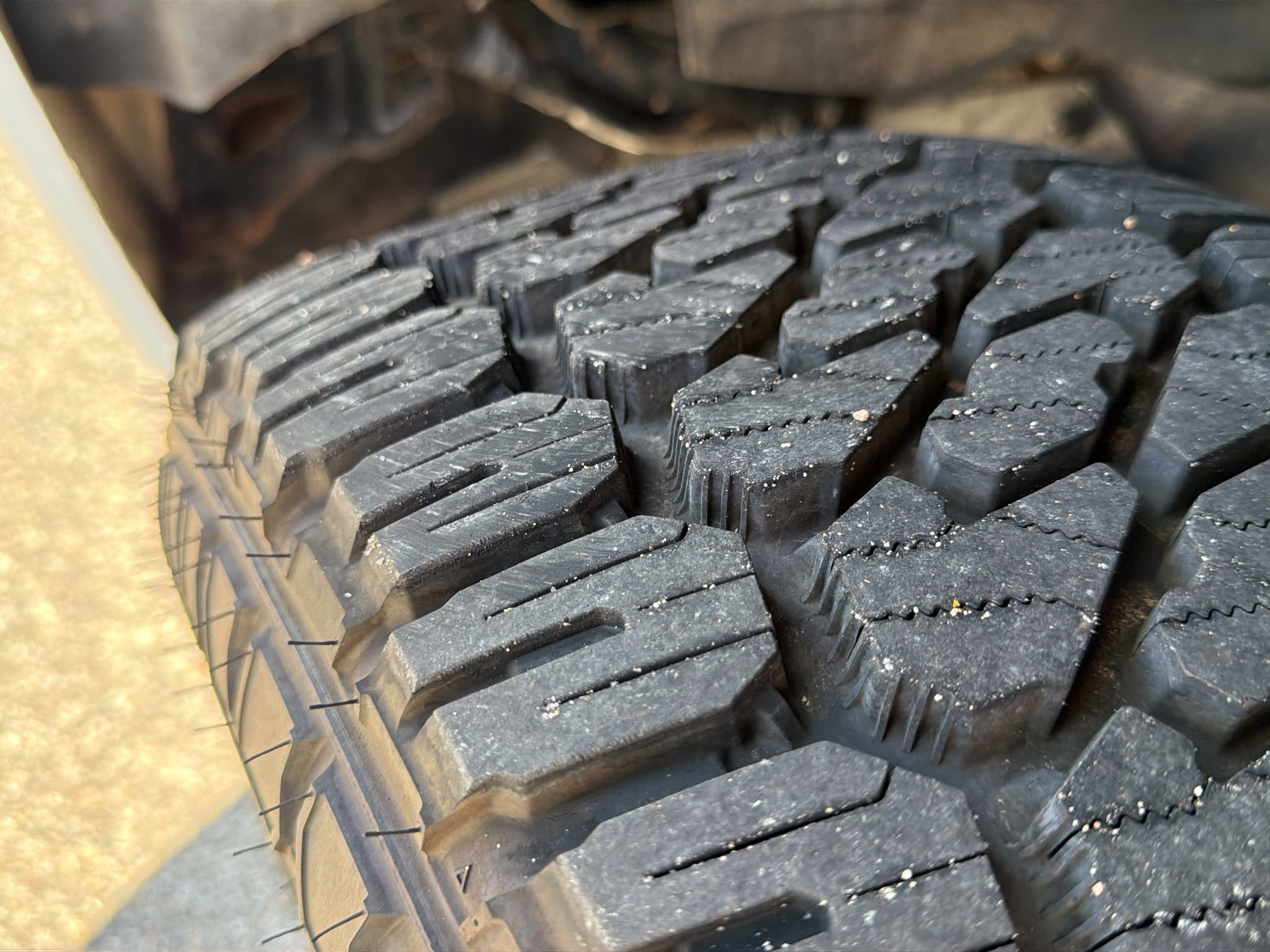

• LT265/70SR18 AS BSW front and rear tires
• Vinyl front seat upholstery
• 2 airbags
• Driver front impact airbag
• Cancellable front passenger air bag
• Auto-locking doors
• Intercooled turbo
• Allison 6-speed automatic
• Tow/Haul Mode selectable mode transmission

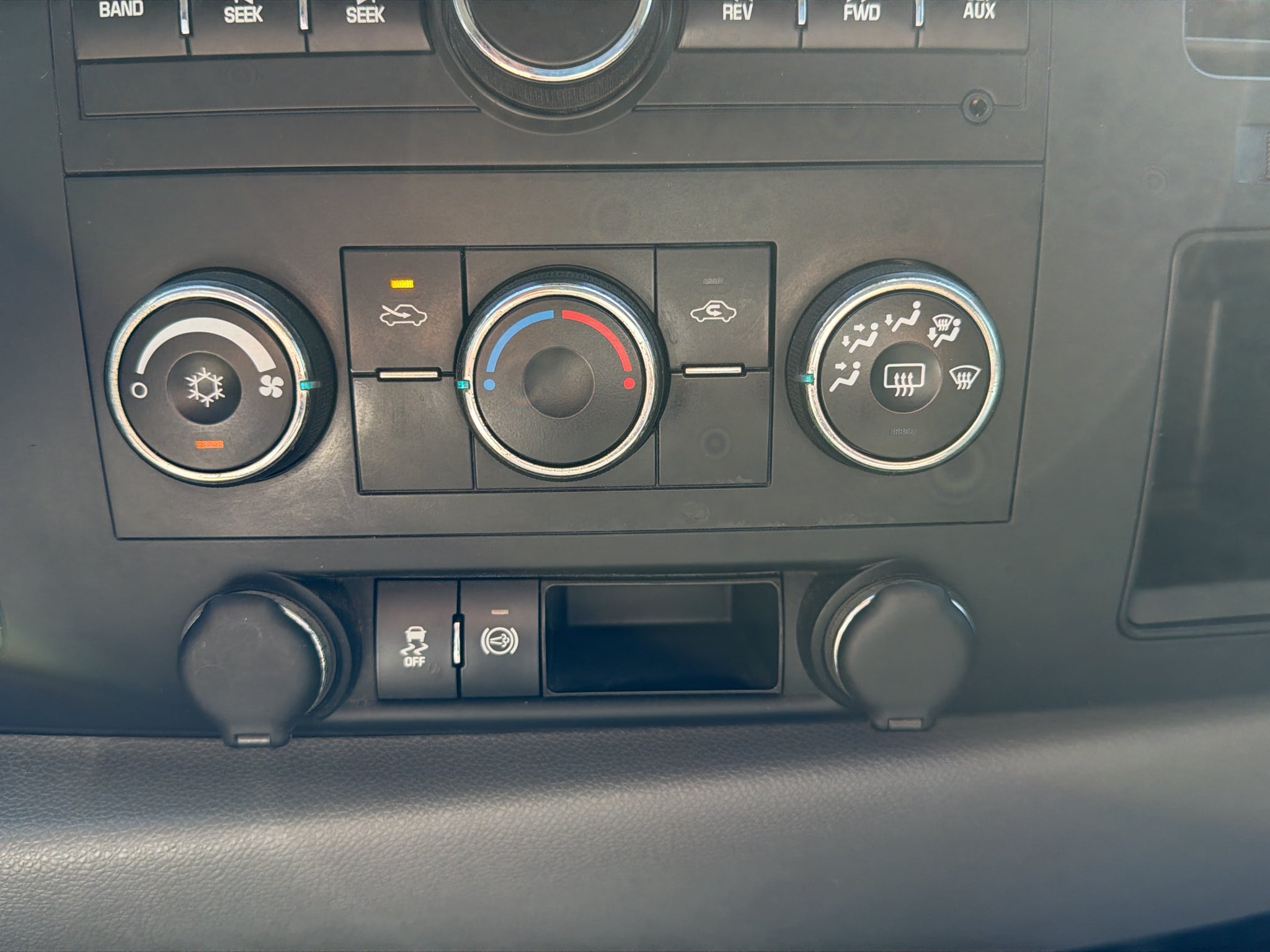

• Manual climate control
• Automatic
• Reflector headlights
• Halogen headlights
• Auto on/off headlight control
• Daytime running lights
• Delay-off headlights
• Remote activated perimeter approach lighting
• 40-20-40 split-bench front seat
• Driver seat with 4-way directional controls
• Split-bench front seat
• Front seat center armrest
• Front passenger seat with 4-way directional controls
• 4-wheel disc brakes
• 4-wheel antilock (ABS) brakes
• Four-wheel drive
• Heavy-duty ride suspension
• Seating capacity: 3
• Trailer wiring harness
• Class IV tow rating
• Trailer hitch
• 2 underbody skid plates
• Front beverage holders
• Front height adjustable seatbelts
• Front seatbelt pretensioners
• Basic warranty: 36 month/36
• 000 miles

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 125
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): - TBD -
• Gross Axle Wt Rating - Rear (lbs): - TBD -
• Curb Weight - Front (lbs): 3531
• Curb Weight - Rear (lbs): 2994
• Gross Vehicle Weight Rating Cap (lbs): 13400
• Gross Combined Wt Rating (lbs): - TBD -
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 16000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9300
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 2400
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1395
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 23100
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 9300
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 5775
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2325
• Maximum Trailering Capacity (lbs): 23100
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 4400
• Spring Capacity - Rear (lbs): 9825
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): 9825
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35.00
• Shock Absorber Diameter - Rear (mm): 35.00
• Stabilizer Bar Diameter - Front (in): 1.32
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): - TBD -
• Rear Brake Rotor Diam x Thickness (in): - TBD -
• Tires
• Front Tire Order Code: QQO
• Rear Tire Order Code: QQO
• Front Tire Size: LT235/80R17E
• Rear Tire Size: LT235/80R17E
• Front Tire Capacity (lbs): 2515
• Rear Tire Capacity (lbs): 2470
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 6.5
• Rear Wheel Size (in): 17 x 6.5
• Spare Wheel Size (in): 17 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: 16.00
• Steering Ratio (:1), At Lock: N/A
• Turning Diameter - Curb to Curb (ft): 45.6
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 133.70
• Length, Overall w/o rear bumper (in): 225.00
• Width, Max w/o mirrors (in): 95.90
• Height, Overall (in): 77.40
• Overhang, Front (in): 38.80
• Overhang, Rear w/o bumper (in): 52.60
• Front Bumper to Back of Cab (in): 116.50
• Cab to Axle (in): 56.00
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 37.90
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.90
• Ground Clearance, Rear (in): 8.60
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.80
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 62.50
• Cargo Box Width @ Wheelhousings (in): 50.60
• Cargo Box (Area) Height (in): 21.00
• Tailgate Width (in): 61.60
• Cargo Volume (ft³): 75.5
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 41.30
• Front Leg Room (in): 41.30
• Front Shoulder Room (in): 65.20
• Front Hip Room (in): 60.30
• Summary

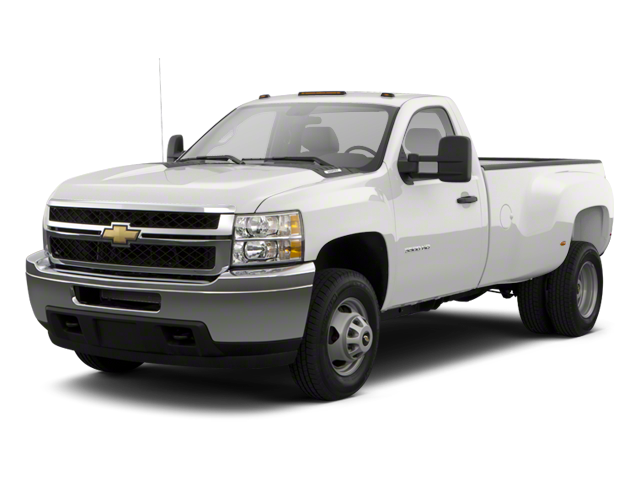

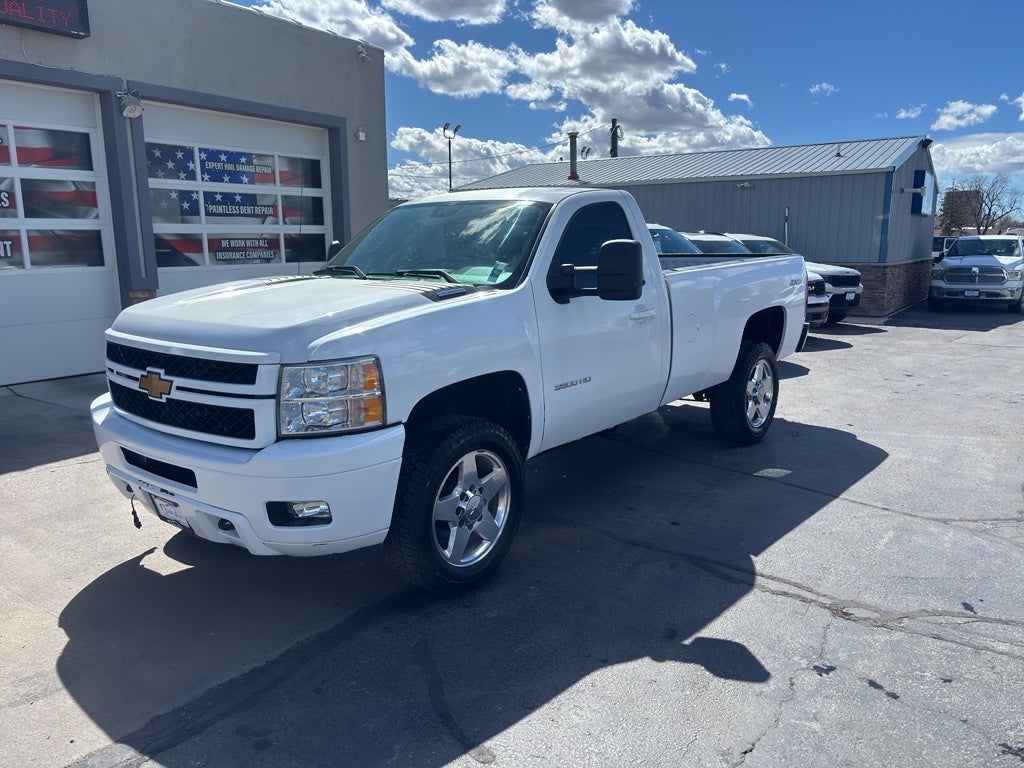

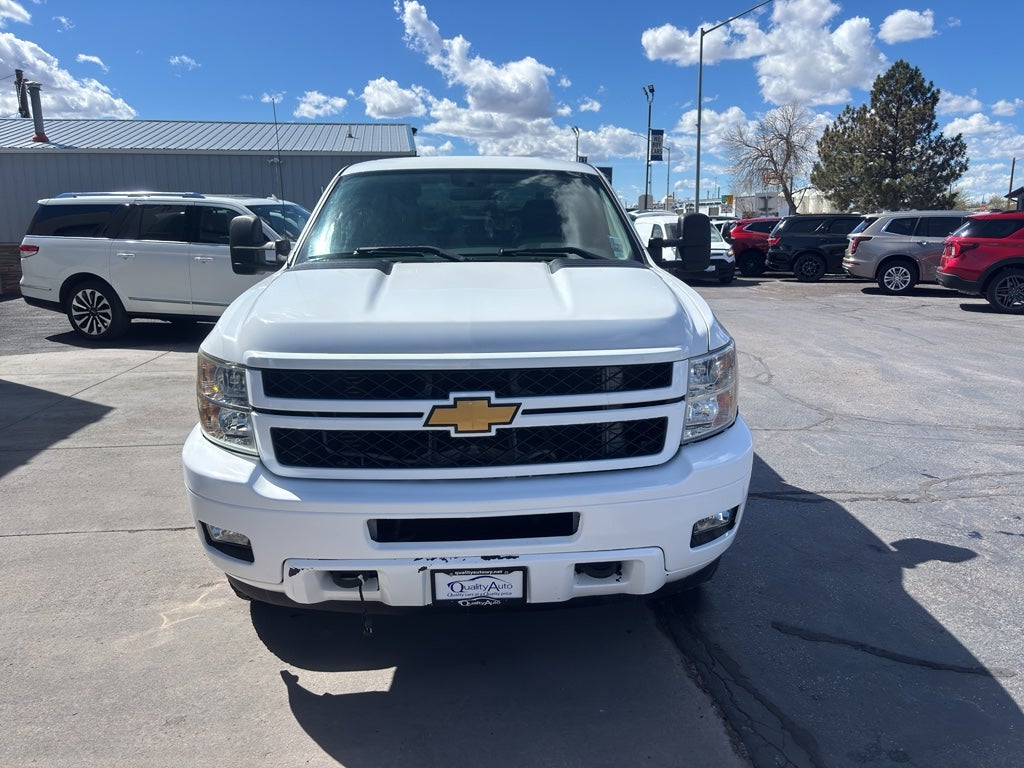

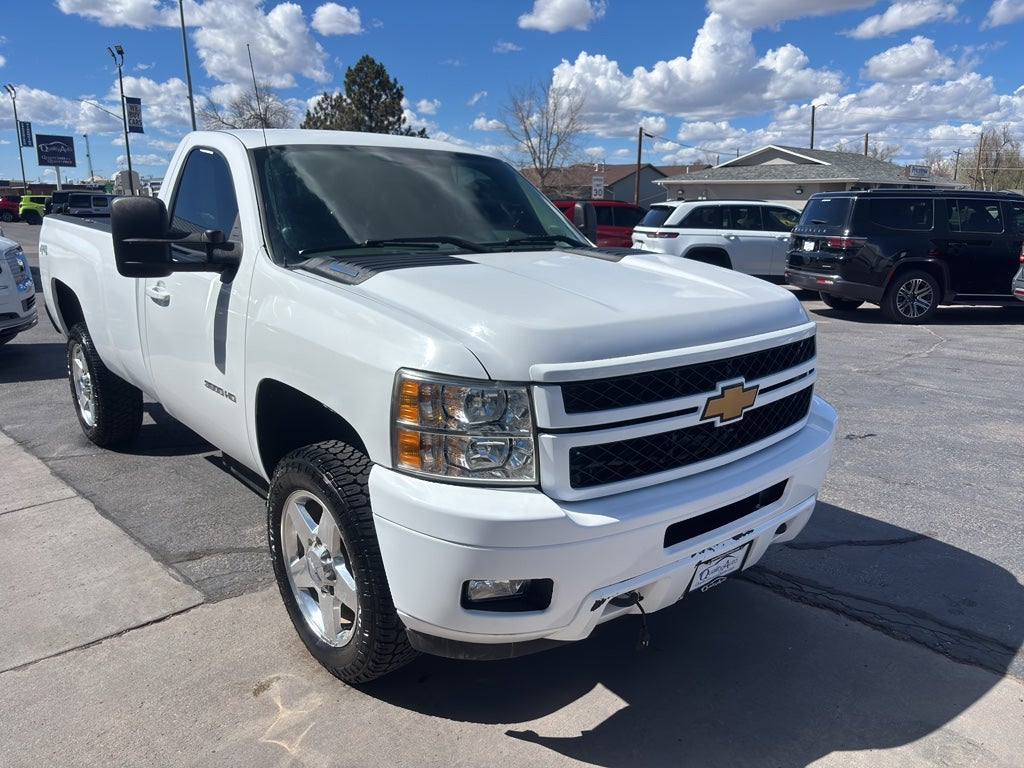

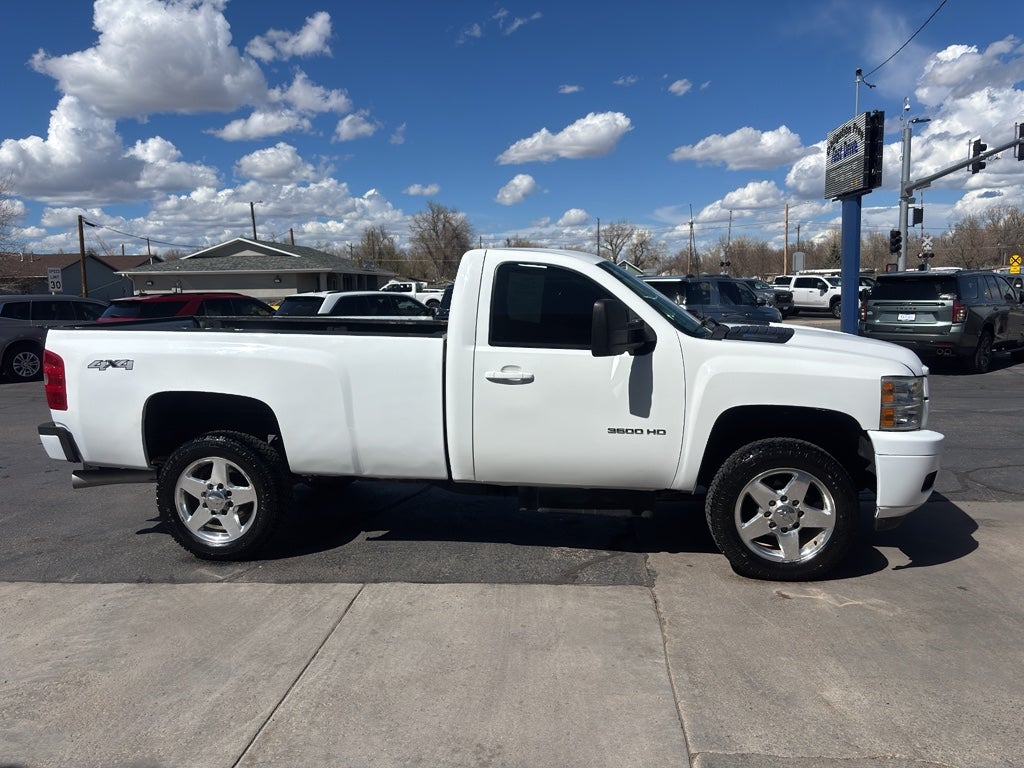

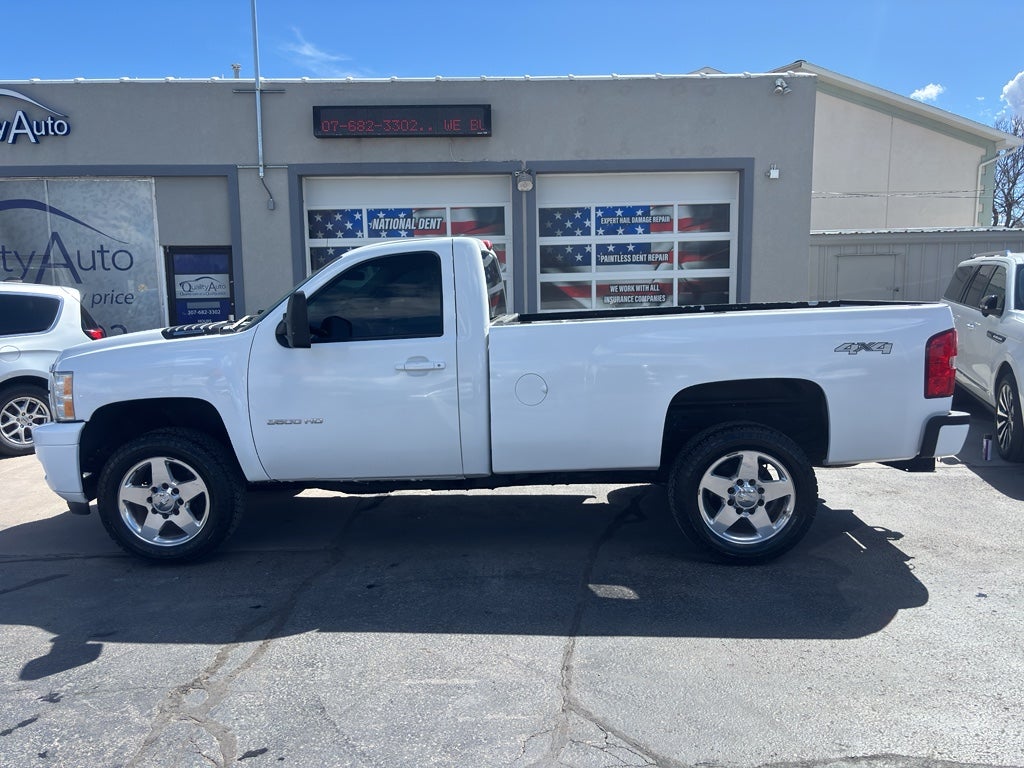

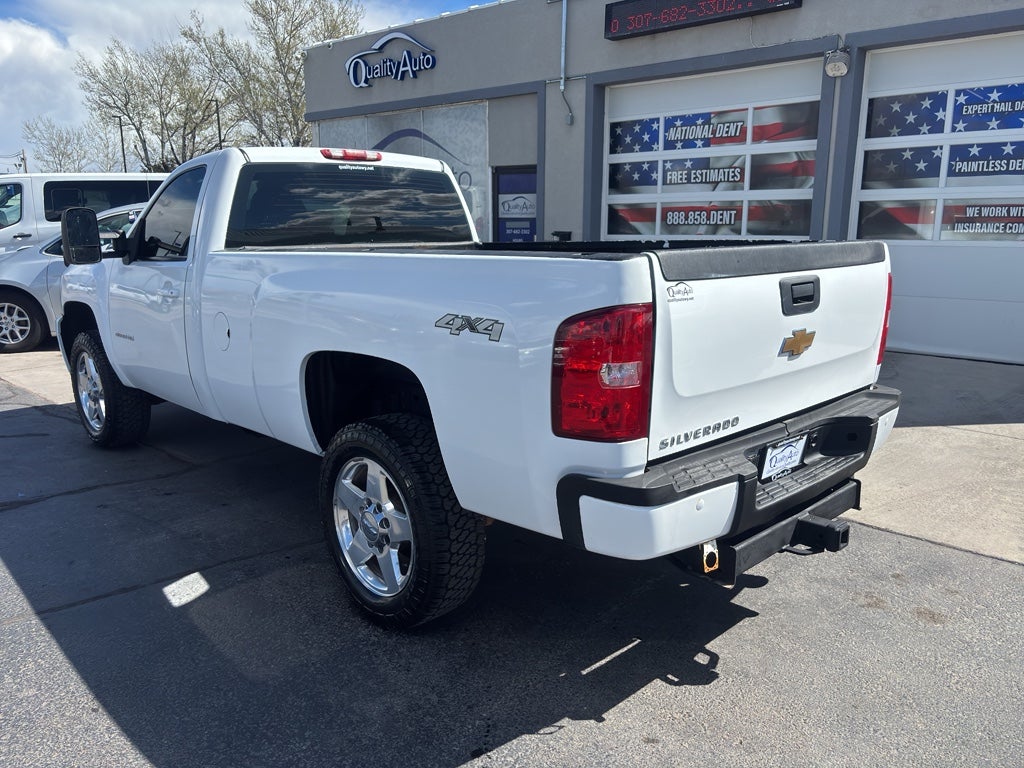

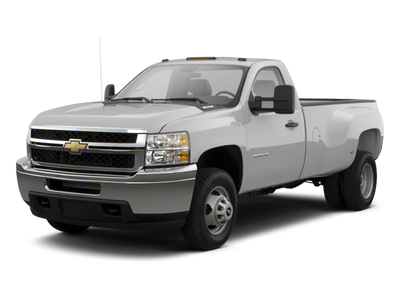

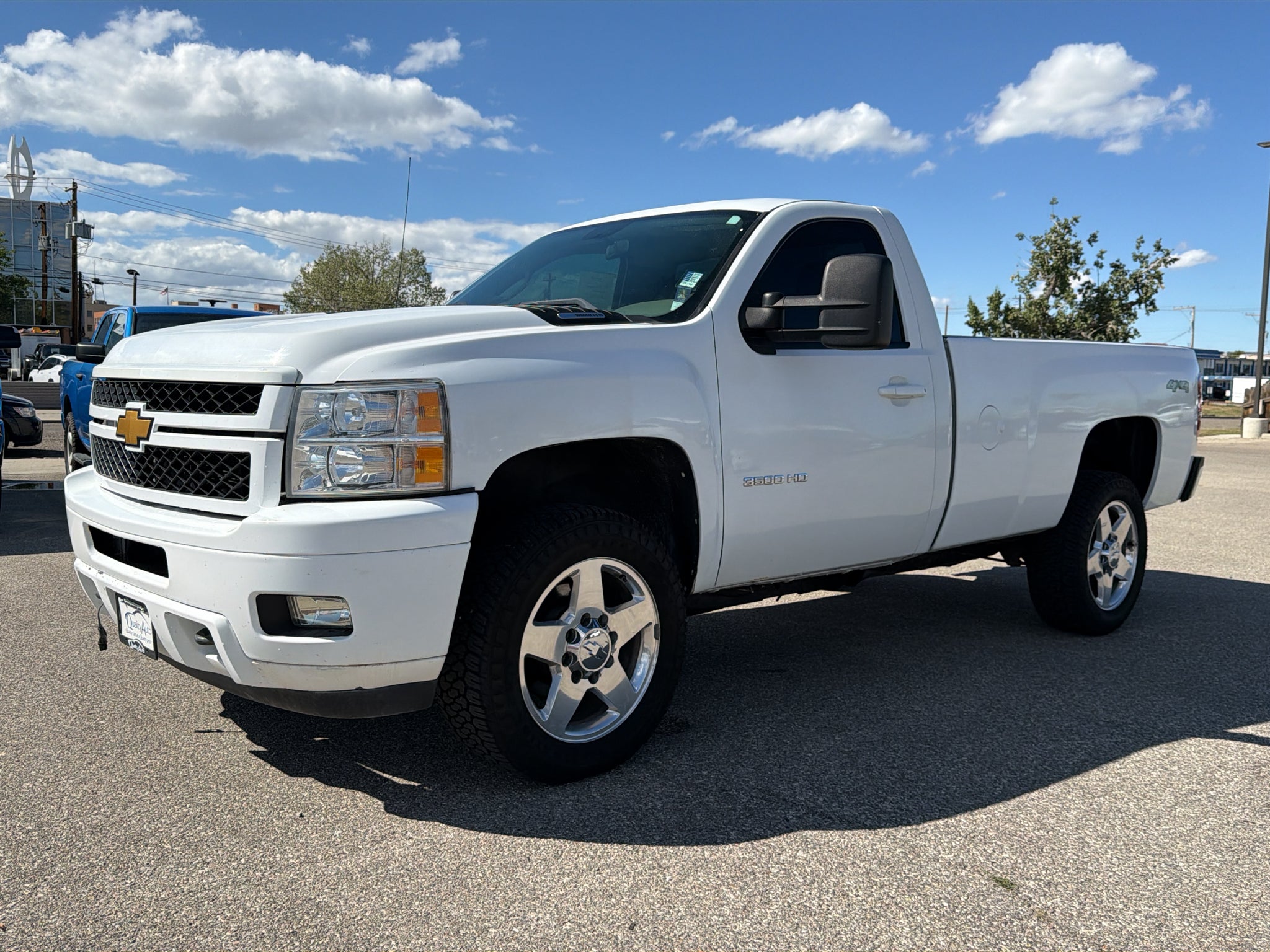

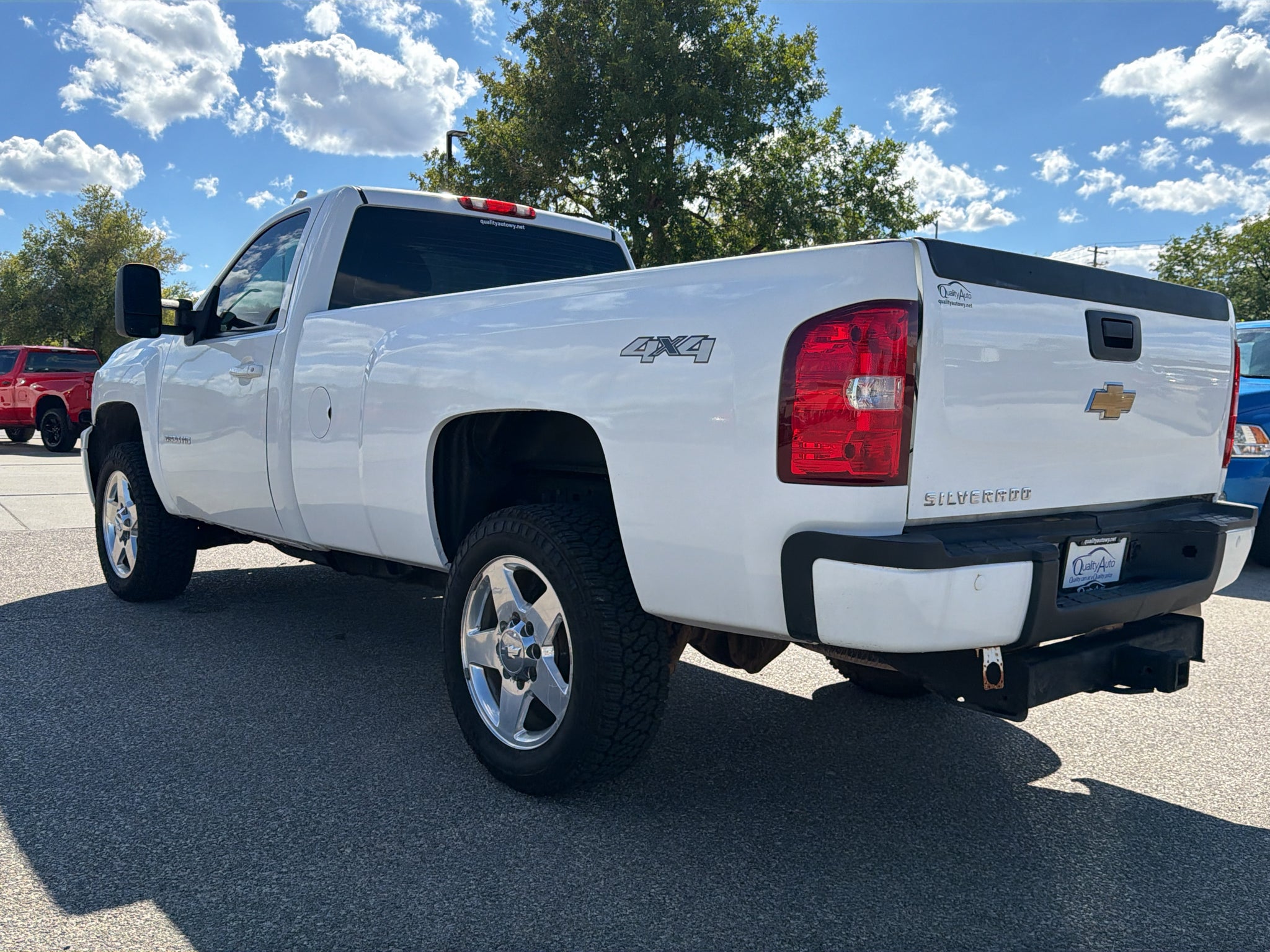

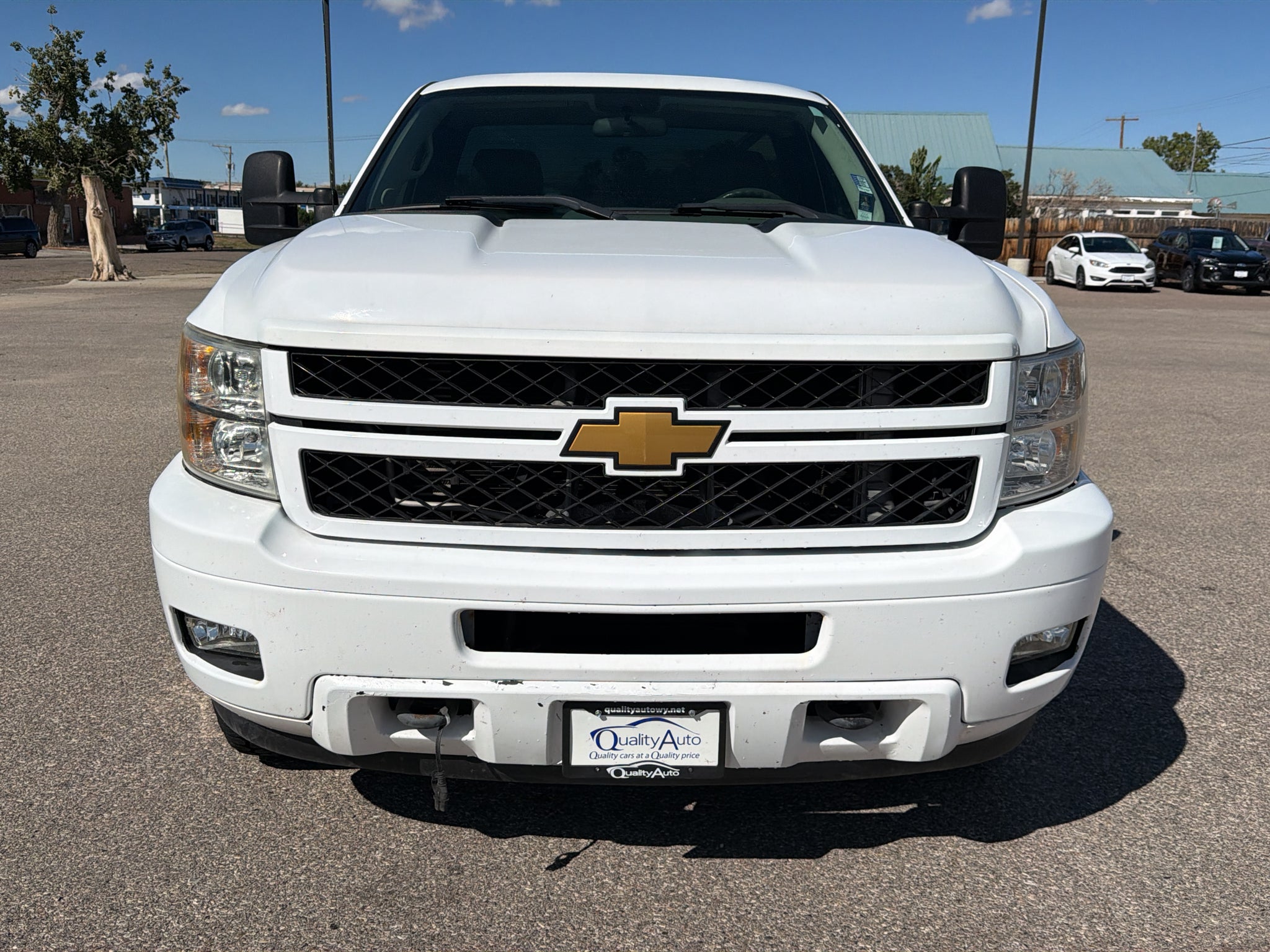

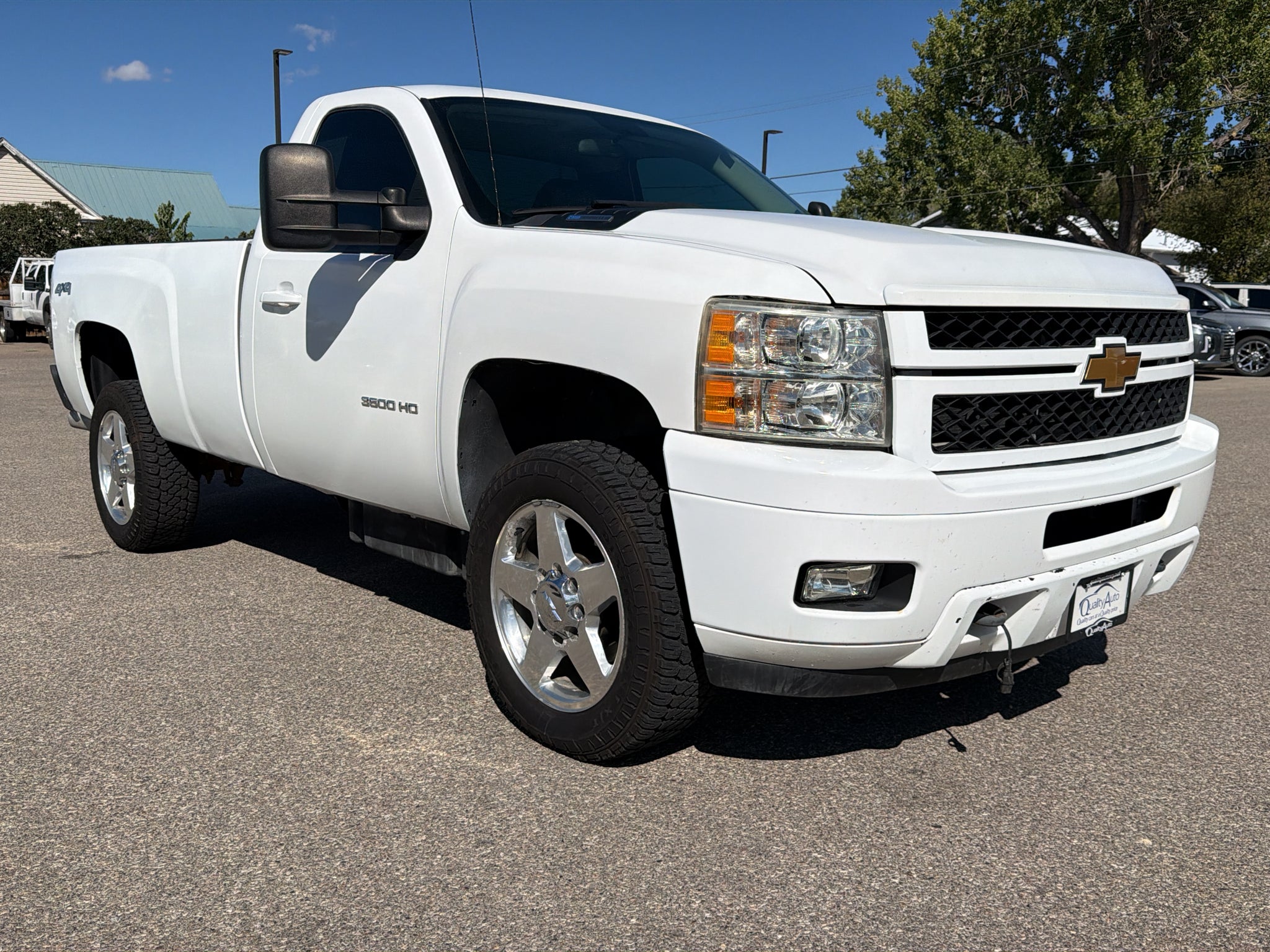

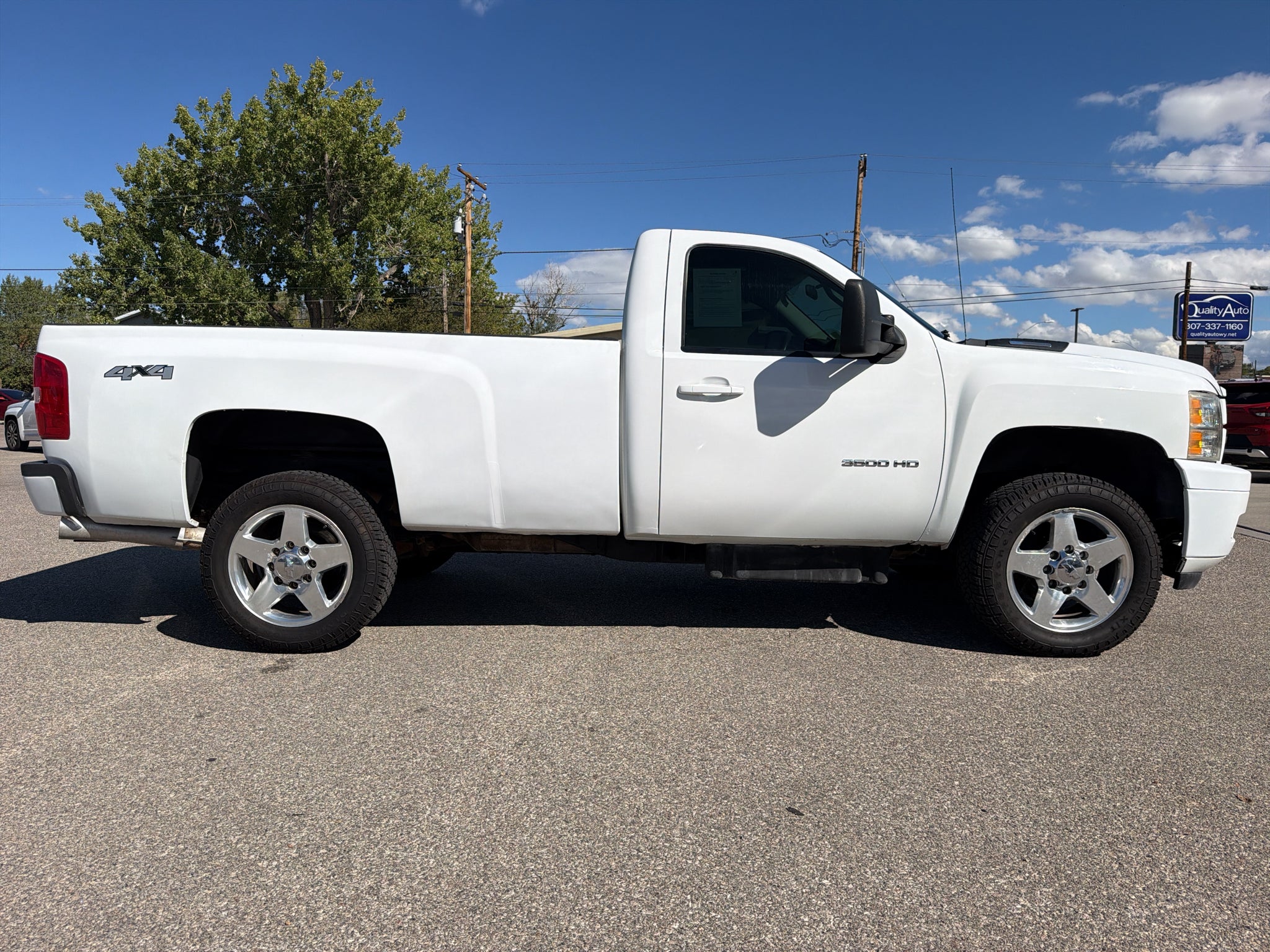

• Vehicle Name: Chevrolet Silverado 3500HD
• Body Style: Regular Cab Pickup
• Body Code: E63
