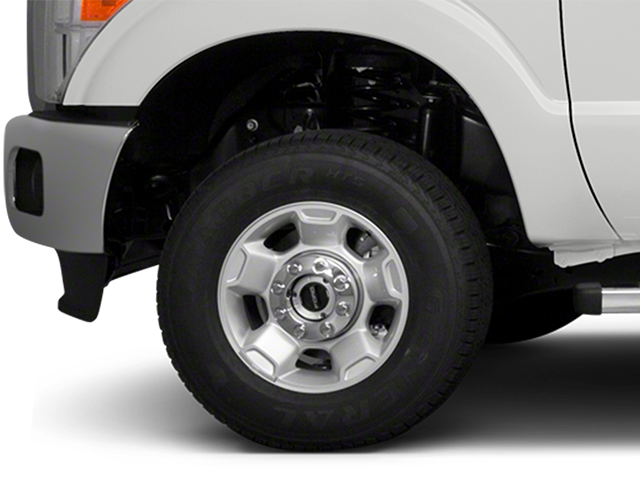

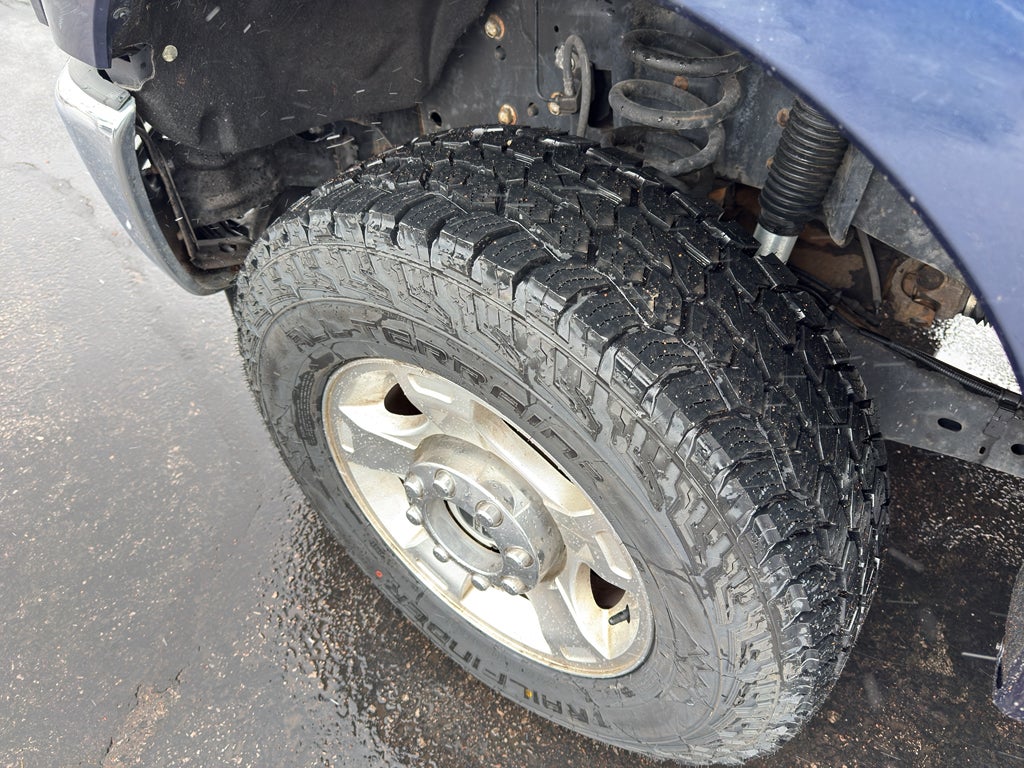

• Wheels: 17" Argent Painted Steel -inc: painted hub covers/center ornaments
• Tires: LT245/75Rx17E BSW A/S (5)
• Regular Box Style
• Wheels w/Hub Covers
• Steel Spare Wheel
• Full-Size Spare Tire Stored Underbody w/Crankdown
• Black Front Bumper w/2 Tow Hooks
• Black Rear Step Bumper
• Black Side Windows Trim and Black Front Windshield Trim
• Black Door Handles
• Black Manual Side Mirrors w/Manual Folding
• Manual Extendable Trailer Style Mirrors
• Fixed Rear Window
• Light Tinted Glass
• Variable Intermittent Wipers
• Fully Galvanized Steel Panels

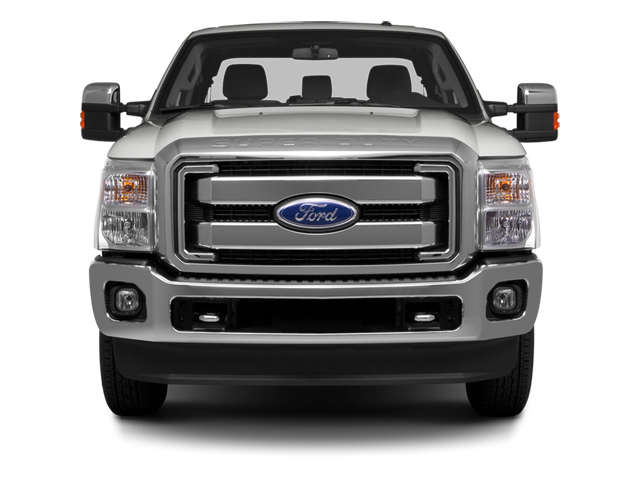

• Black Grille
• Front License Plate Bracket

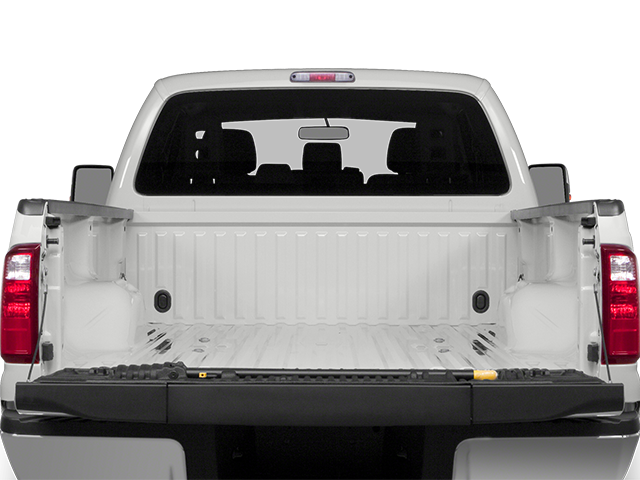

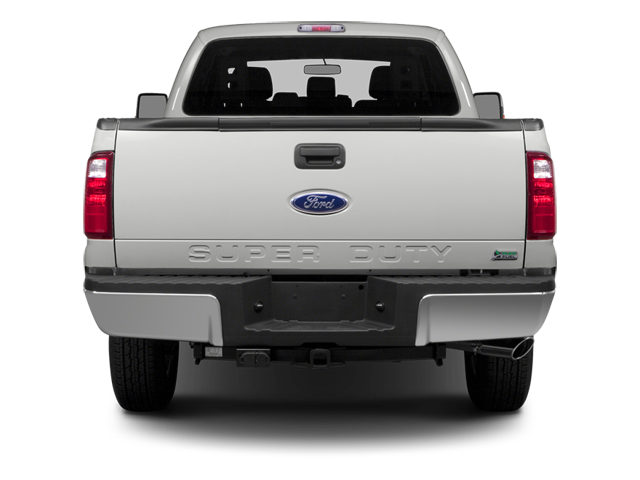

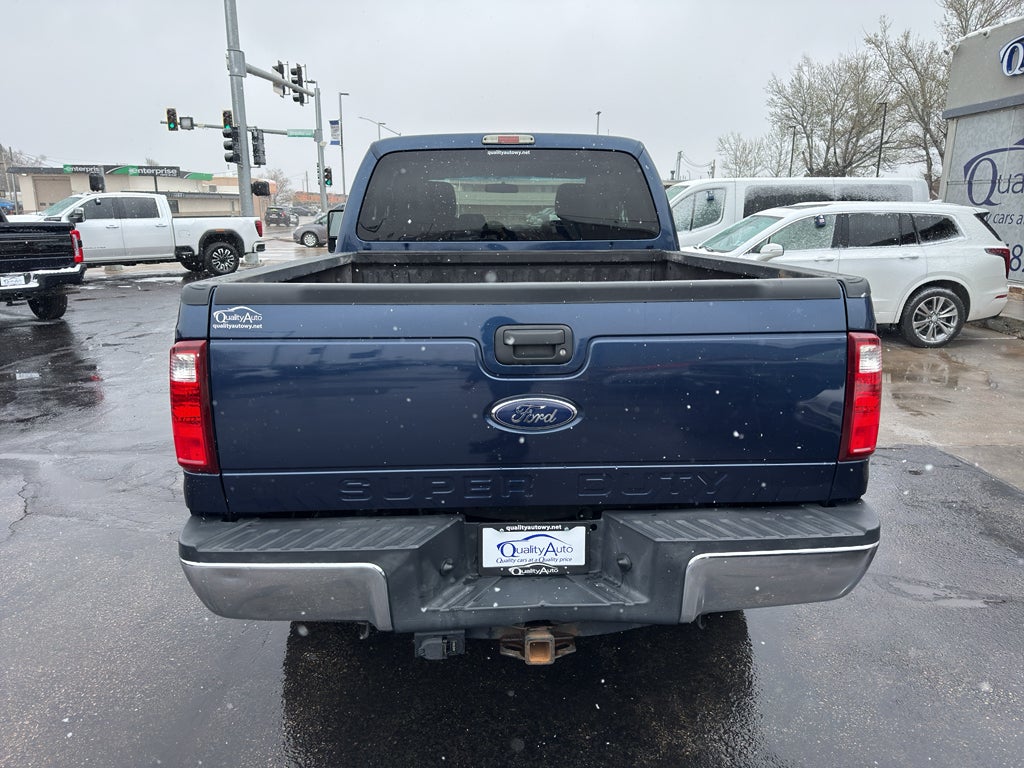

• Tailgate Rear Cargo Access
• Reverse Opening Rear Doors
• Manual Tailgate/Rear Door Lock
• Reflector Halogen Headlamps
• Cargo Lamp w/High Mount Stop Light

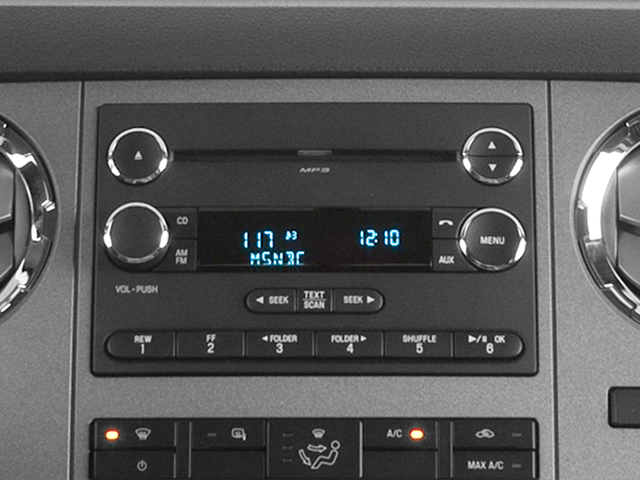

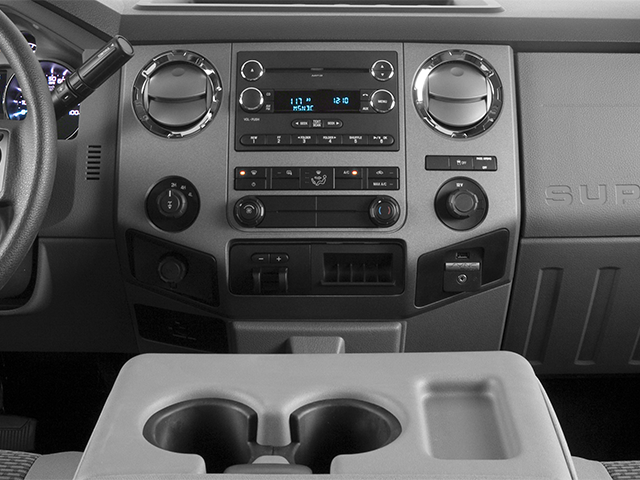

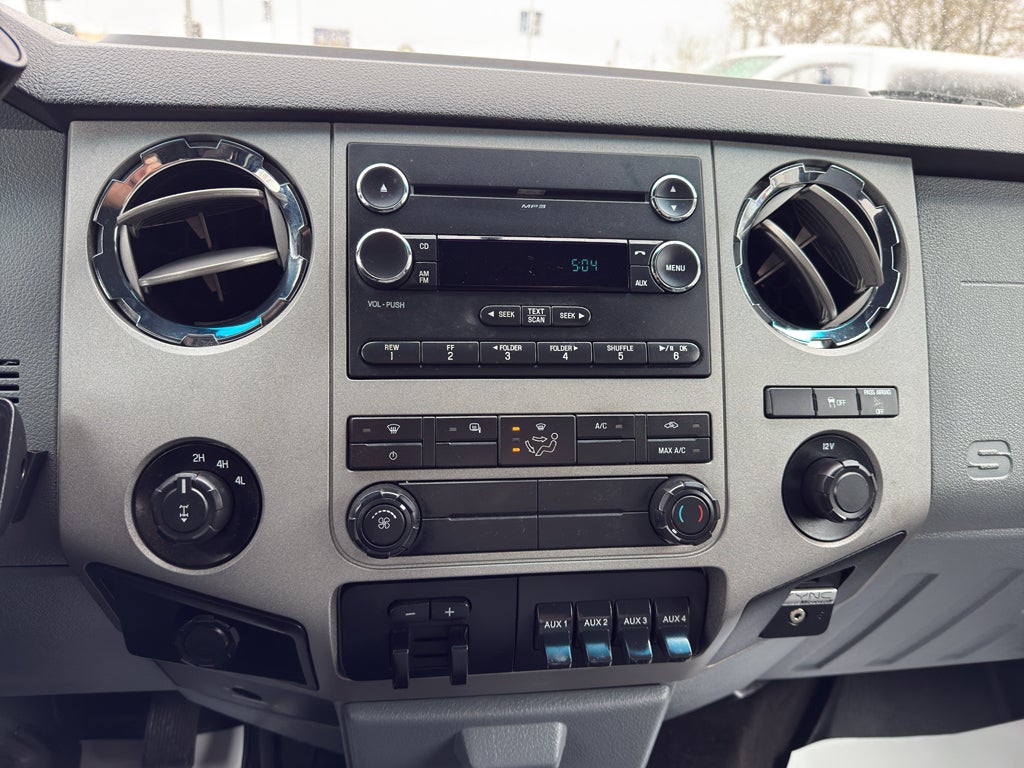

• Radio: AM/FM Stereo w/Digital Clock -inc: 2-speakers
• Radio w/Clock
• 2 Speakers
• Fixed Antenna

• Front Seats w/Manual Driver Lumbar
• 4-Way Driver Seat -inc: Manual Recline, Fore/Aft Movement and Manual Lumbar Support
• 4-Way Passenger Seat -inc: Manual Recline and Fore/Aft Movement

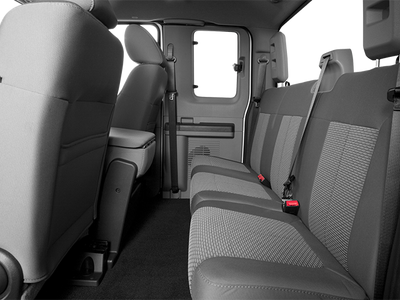

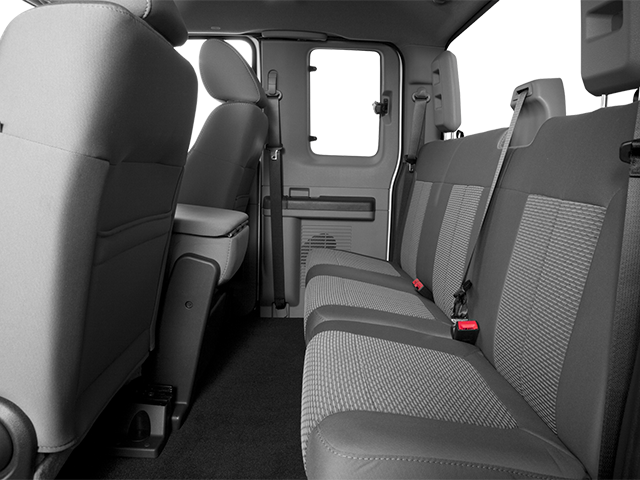

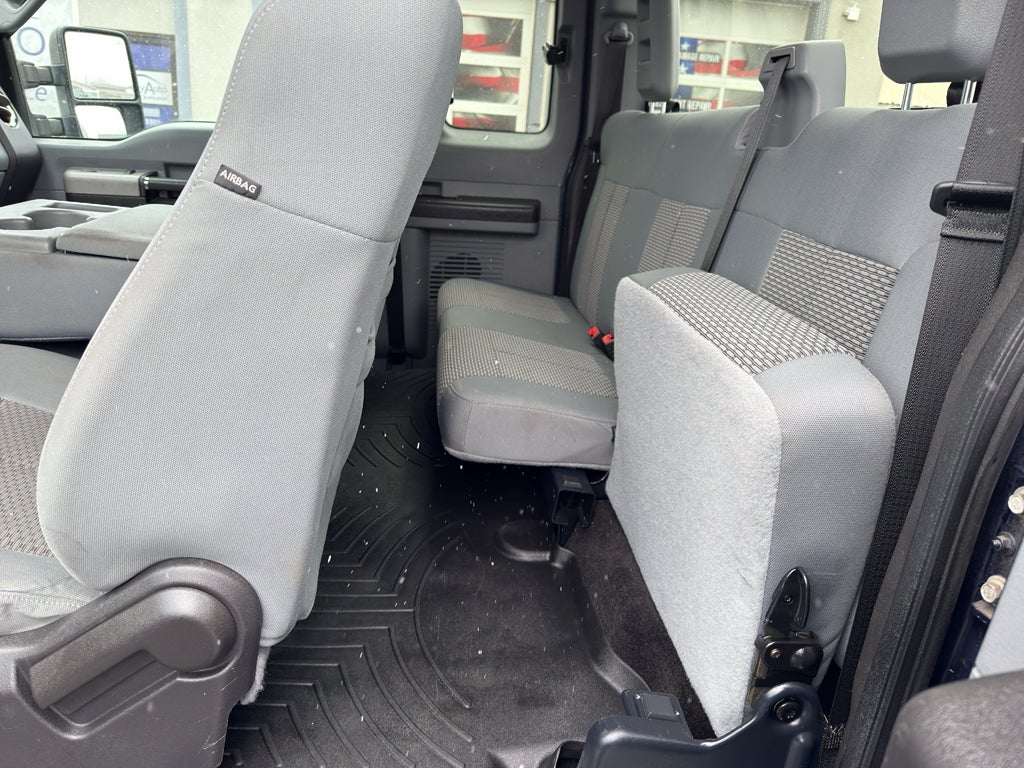

• 60-40 Folding Split-Bench Front Facing Fold-Up Cushion Rear Seat

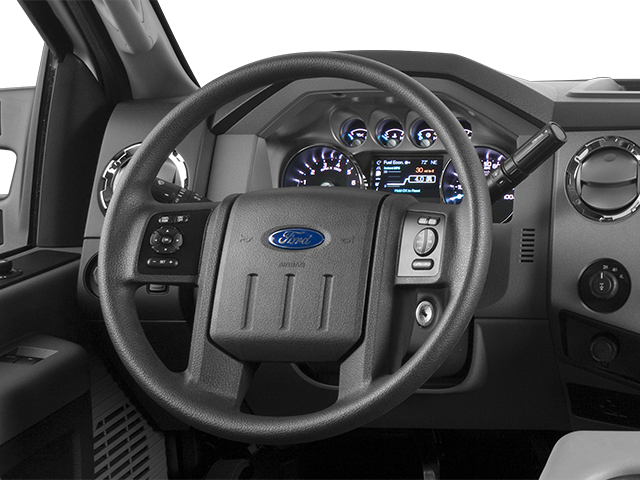

• Manual Tilt/Telescoping Steering Column
• Manual Vented Rear Windows

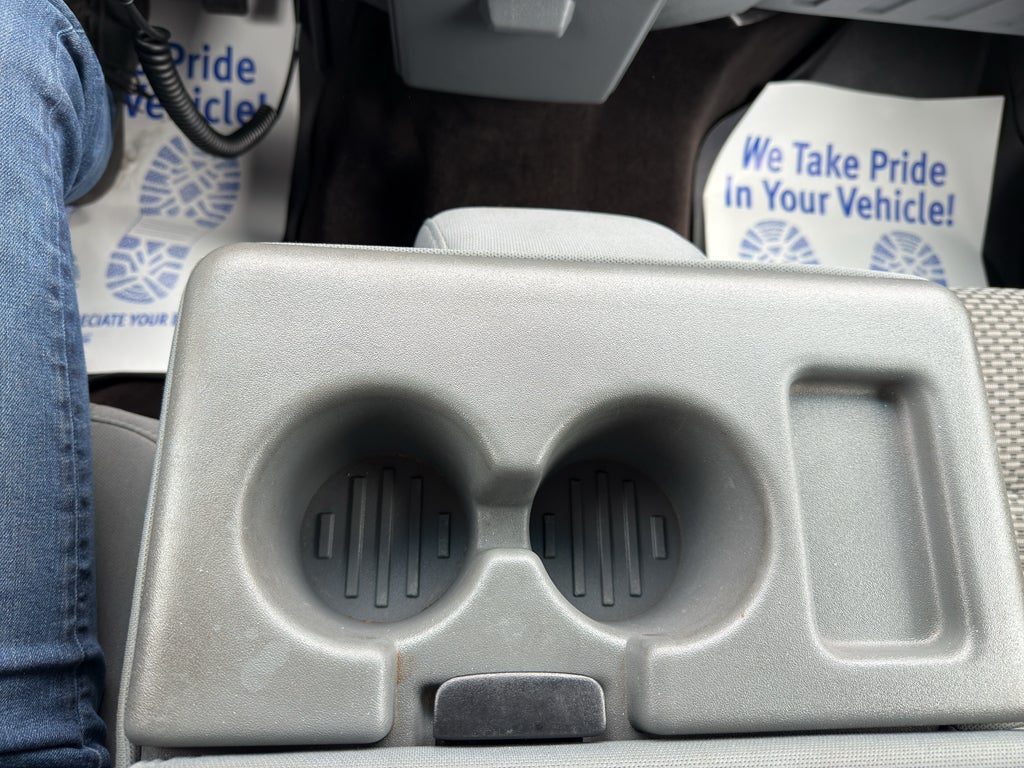

• Front Cupholder
• Manual Air Conditioning
• HVAC -inc: Underseat Ducts

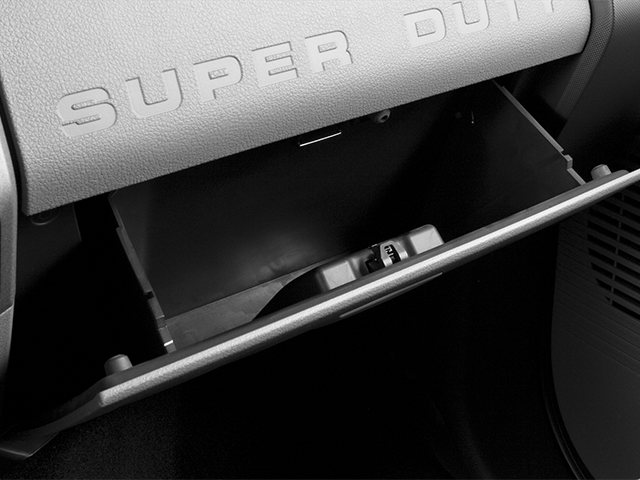

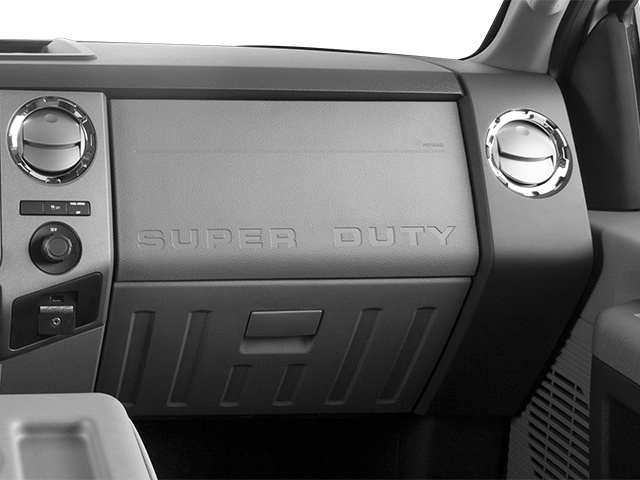

• Glove Box
• Interior Trim -inc: Chrome Interior Accents
• Full Cloth Headliner
• Urethane Gear Shifter Material

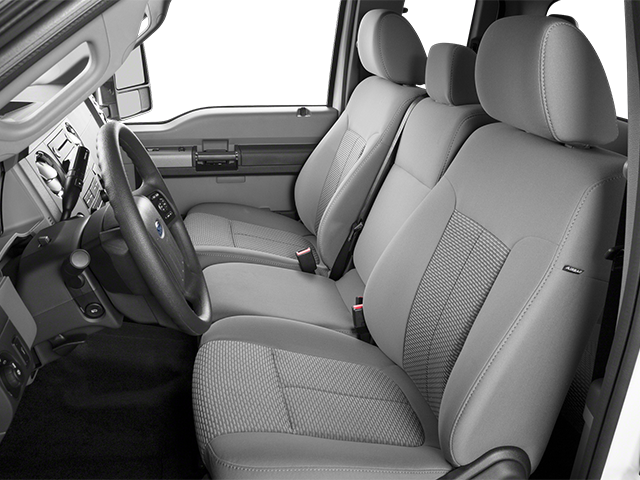

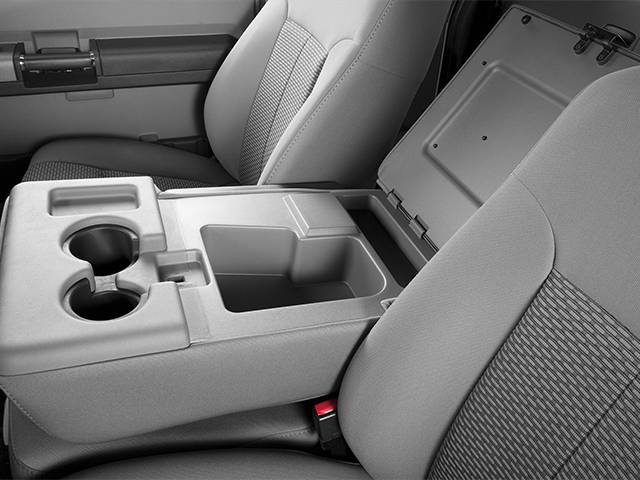

• Heavy Duty Vinyl 40/20/40 Split Bench Seat -inc: center armrest, cupholder and storage
• Day-Night Rearview Mirror
• Passenger Visor Vanity Mirror
• 2 12V DC Power Outlets
• Full Overhead Console w/Storage and 2 12V DC Power Outlets
• Front Map Lights
• Fade-To-Off Interior Lighting
• Full Vinyl/Rubber Floor Covering
• Instrument Panel Bin and Dashboard Storage
• Manual 1st Row Windows
• Driver Information Center
• Outside Temp Gauge

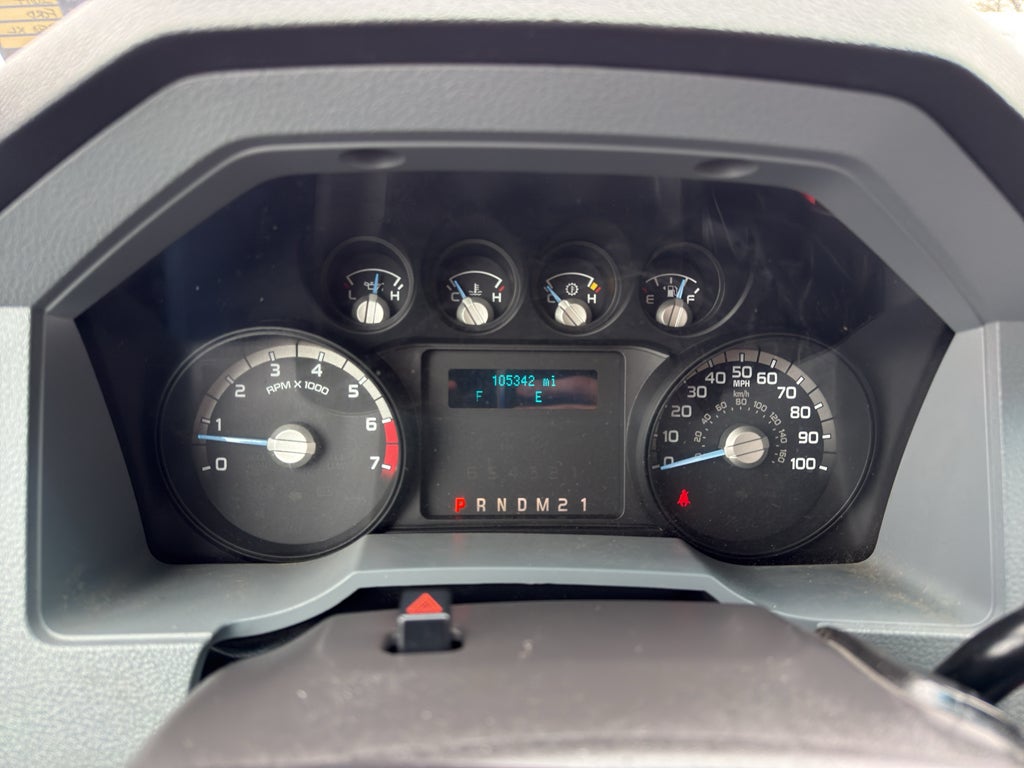

• Analog Appearance
• Front Center Armrest w/Storage
• Manual Adjustable Front Head Restraints and Fixed Rear Head Restraints
• Securilock Anti-Theft Ignition (pats) Immobilizer

• AdvanceTrac w/Roll Stability Control Electronic Stability Control (ESC) And Roll Stability Control (RSC)
• ABS And Driveline Traction Control
• Side Impact Beams
• Dual Stage Driver And Passenger Seat-Mounted Side Airbags
• Low Tire Pressure Warning
• Dual Stage Driver And Passenger Front Airbags w/Passenger Off Switch
• Mykey System -inc: Top Speed Limiter, Audio Volume Limiter, Early Low Fuel Warning, Programmable Sound Chimes and Beltminder w/Audio Mute
• Curtain 1st And 2nd Row Airbags
• Outboard Front Lap And Shoulder Safety Belts -inc: Rear Center 3 Point and Height Adjusters

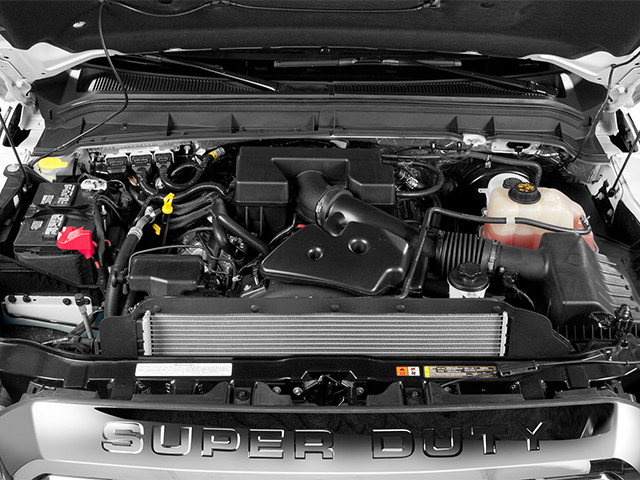

ENGINE: 6.2L 2-VALVE SOHC EFI NA V8 FLEX-FUEL

• (STD)

• Order Code 603A: TorqShift 6-Speed Automatic Overdrive Transmission; AM/FM stereo/single-CD/MP3 Player Radio; Cloth 40/20/40 Split Bench Seat; 6.2L 2-Valve SOHC EFI NA V8 Flex-Fuel Engine; 17" 6 Spoke Cast Aluminum Wheels; 10
• 000 Lb Payload Package GVWR; LT245/75Rx17E BSW A/S (5) Tires; 3.73 Axle Ratio
• PowerScope Trailer-Tow Mirrors
• Exterior Back-Up Alarm
• All-Weather Floor Mats
• Brake assist system

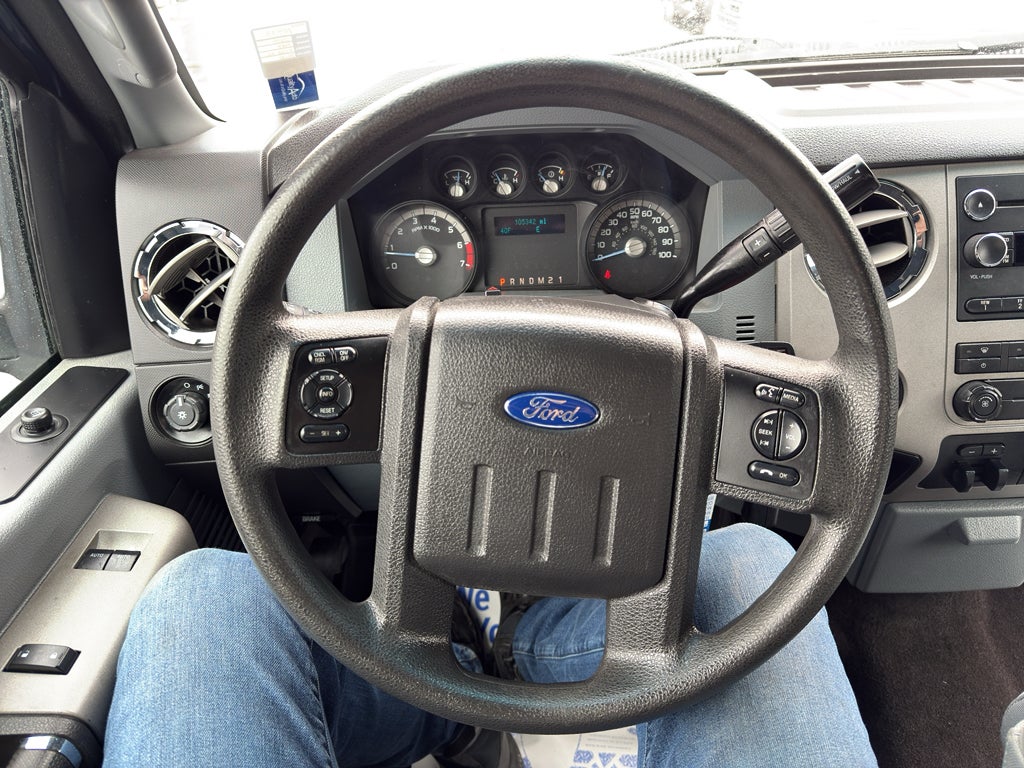

• Cruise control with steering wheel mounted controls
• Part-time 4WD
• 6.2L V-8 variable valve control
• regular unleaded
• engine with 385HP
• 6.2L V-8
• MyKey restricted driving mode/alerts
• Mechanical
• Bluetooth® wireless audio streaming
• SecuriLock immobilizer
• Bluetooth® handsfree wireless device connectivity
• SYNC AppLink smart device app link
• Trailer brake controller
• Trailer sway control
• SYNC external memory control
• PowerScope power extendable trailer mirrors
• AdvanceTrac w/Roll Stability Control electronic stability control system with anti-roll
• Hill start assist
• 3 12V power outlets
• Easy lift tailgate
• Easy lower tailgate
• Heated driver and passenger side door mirrors
• PowerFold power folding door mirrors
• Manual tilting steering wheel
• Manual telescopic steering wheel
• Metallic paint
• Chrome hub wheel covers
• 17 x 7.5-inch front and rear silver aluminum wheels
• LT245/75SR17 AS BSW 660 RPM front and rear tires
• Cloth front seat upholstery
• 6 airbags
• Driver front impact airbag
• Seat mounted side impact driver airbag
• Curtain first and second-row overhead airbags
• Cancellable front passenger air bag
• Seat mounted side impact front passenger airbag
• TorqShift 6-speed automatic
• Selectable mode transmission
• Cloth rear seat upholstery
• Manual climate control
• Rear under seat climate control ducts
• Back-up alarm
• Exterior temperature display
• Transmission electronic control
• SelectShift Sequential shift control
• Automatic
• Reflector headlights
• Halogen headlights
• Remote activated perimeter approach lighting
• 40-20-40 split-bench front seat
• Driver seat with 4-way directional controls

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 650
• Cold Cranking Amps @ 0° F (2nd): 650
• Maximum Alternator Capacity (amps): 157
• Weight Information
• Base Curb Weight (lbs): 6625
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 6100
• Curb Weight - Front (lbs): 3821
• Curb Weight - Rear (lbs): 2804
• Gross Vehicle Weight Rating Cap (lbs): 10000
• Gross Combined Wt Rating (lbs): 19000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 12400
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1240
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 12300
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3075
• Maximum Trailering Capacity (lbs): 12400
• Suspension
• Suspension Type - Front: Other
• Suspension Type - Rear: Leaf
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 6100
• Axle Type - Front: Non-Independent
• Axle Type - Rear: Rigid Axle
• Axle Capacity - Front (lbs): 6000
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.3
• Rear Brake Rotor Diam x Thickness (in): 14.3
• Tires
• Front Tire Order Code: TBK
• Rear Tire Order Code: TBK
• Front Tire Size: LT245/75SR17
• Rear Tire Size: LT245/75SR17
• Spare Tire Size: Full-Size
• Front Tire Capacity (lbs): 6390
• Rear Tire Capacity (lbs): 6390
• Revolutions/Mile @ 45 mph - Front: 660
• Revolutions/Mile @ 45 mph - Rear: 660
• Wheels
• Front Wheel Size (in): 17 X 7.5
• Rear Wheel Size (in): 17 X 7.5
• Spare Wheel Size (in): Full-Size
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Re-Circulating Ball
• Turning Diameter - Curb to Curb (ft): 47.5
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 35
• Exterior Dimensions
• Wheelbase (in): 142
• Length, Overall (in): 232.4
• Width, Max w/o mirrors (in): 79.9
• Height, Overall (in): 79.5
• Cab to Axle (in): 40.2
• Ground to Top of Load Floor (in): 35.6
• Ground Clearance, Front (in): 8.2
• Ground Clearance, Rear (in): 8.2
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 81.8
• Cargo Box Width @ Top, Rear (in): 69.3
• Cargo Box Width @ Floor (in): 69.3
• Cargo Box Width @ Wheelhousings (in): 50.9
• Cargo Box (Area) Height (in): 20
• Tailgate Width (in): 60.6
• Cargo Volume (ft³): 64.1
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 40.7
• Front Leg Room (in): 41.1
• Front Shoulder Room (in): 68
• Front Hip Room (in): 67.6
• Second Head Room (in): 38.1
• Second Leg Room (in): 31.6
• Second Shoulder Room (in): 68.1
• Second Hip Room (in): 67.3
• Summary

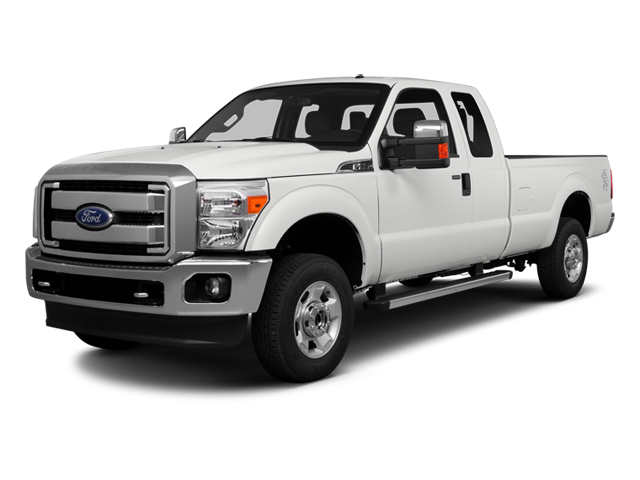

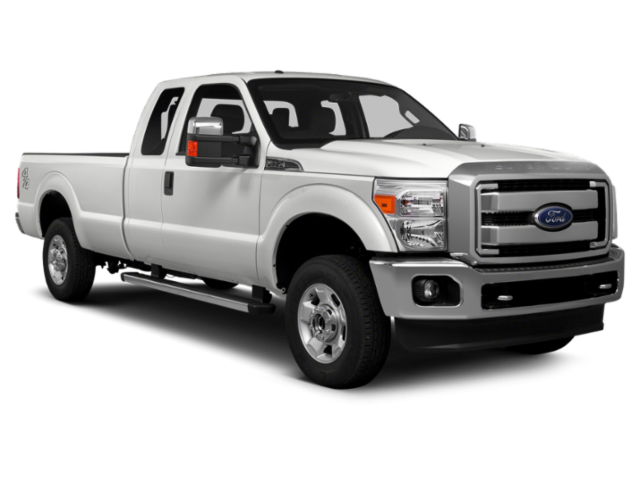

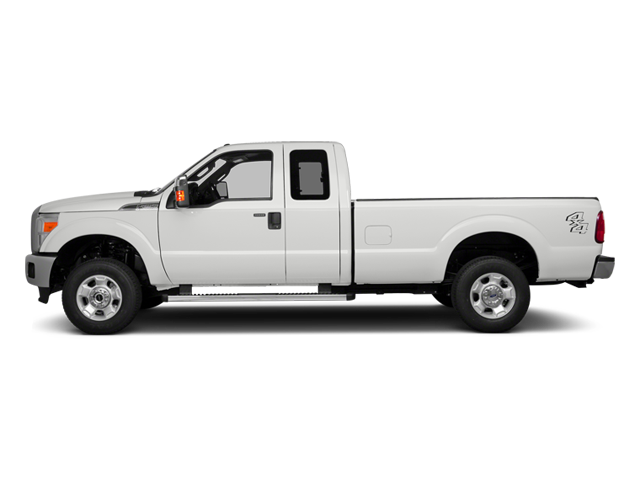

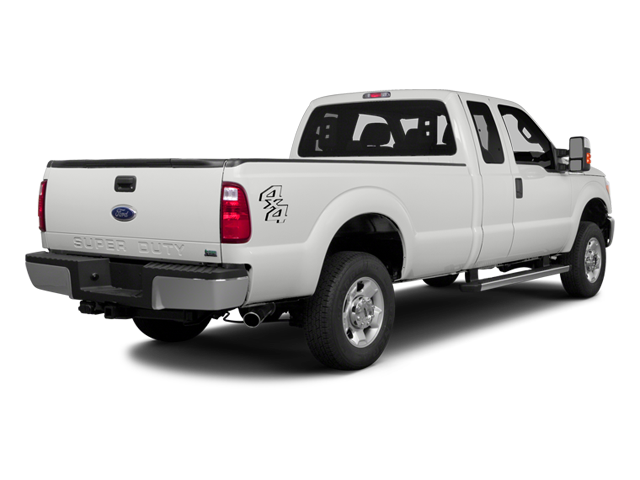

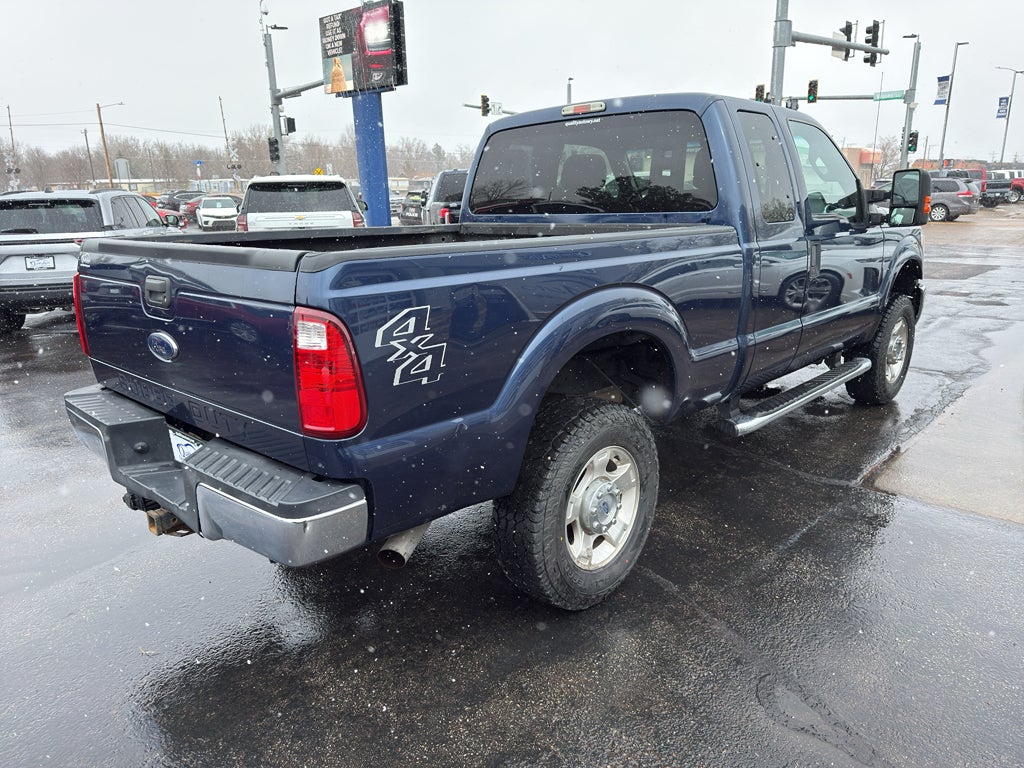

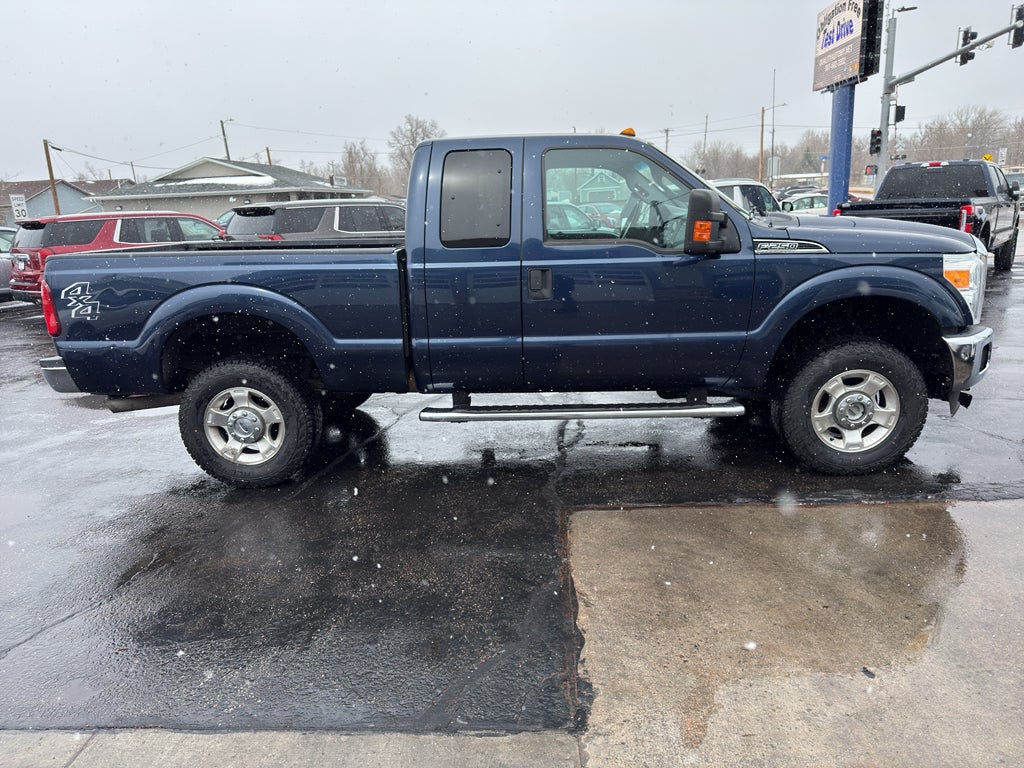

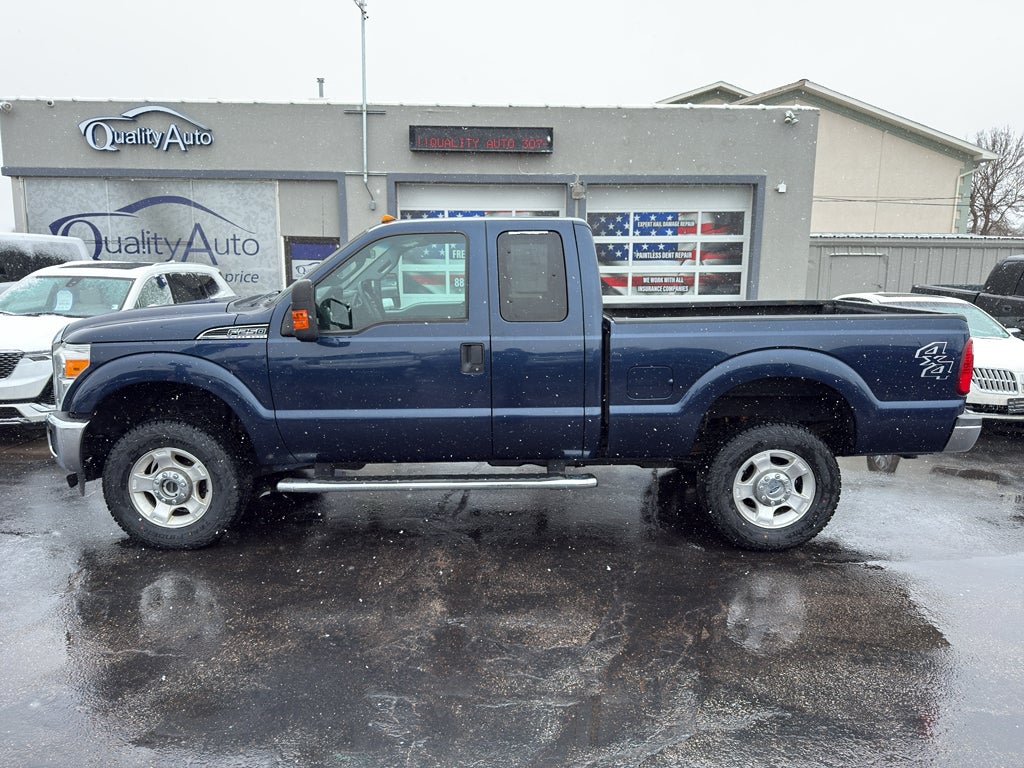

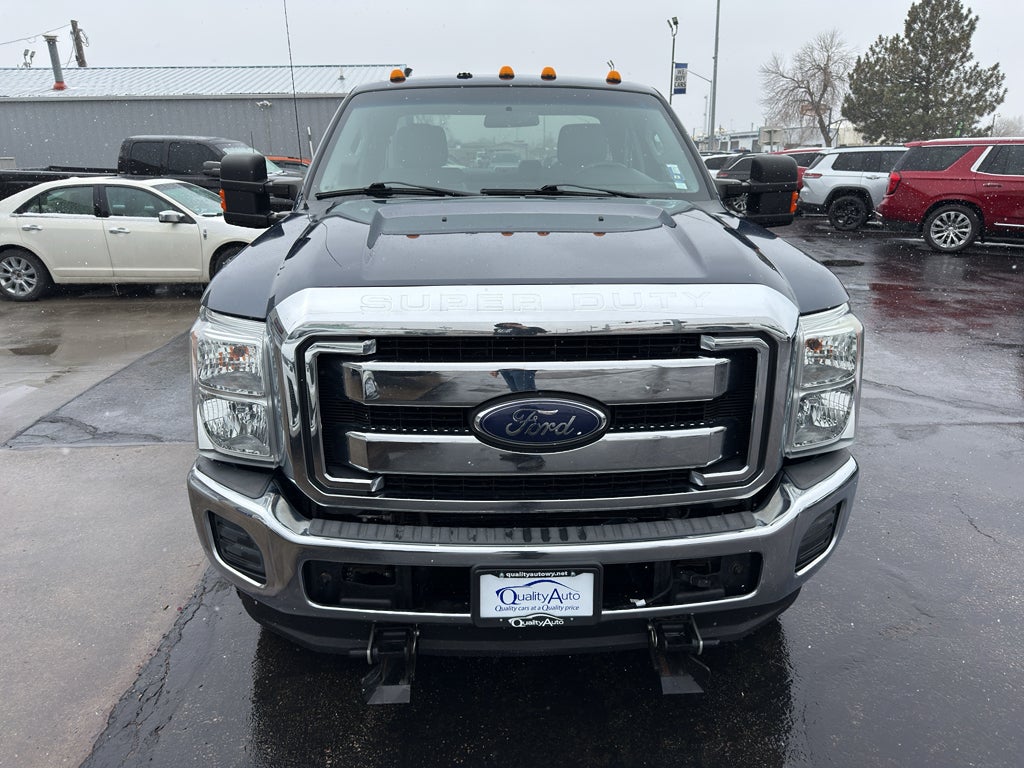

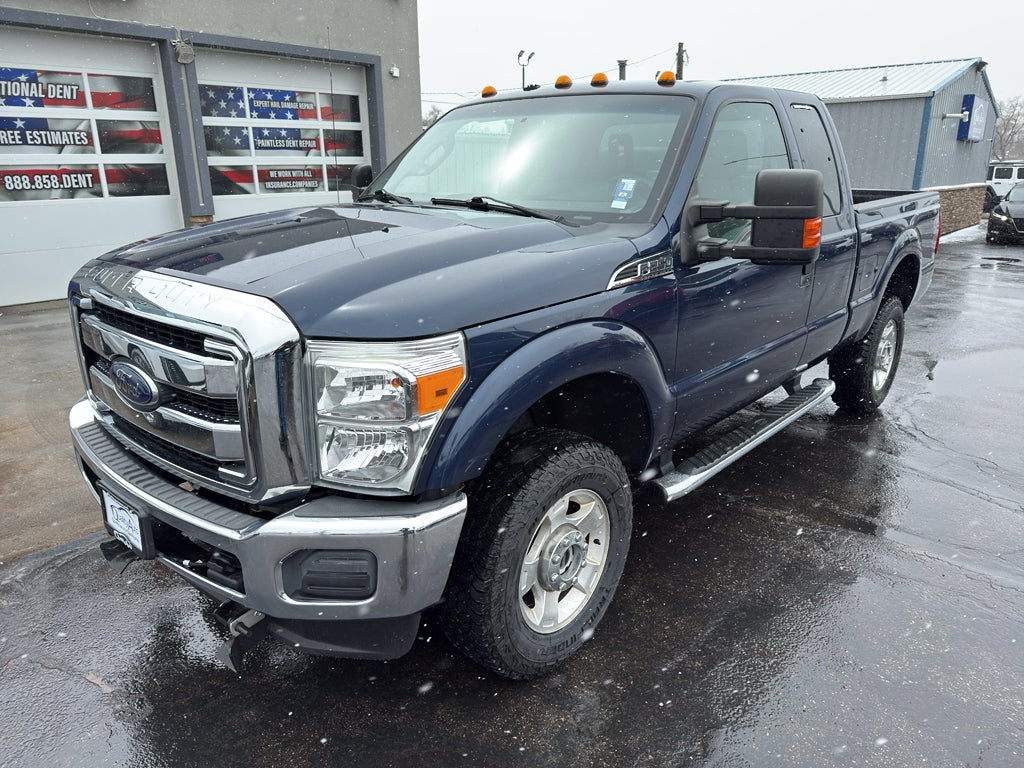

• Vehicle Name: Ford Super Duty F-250 SRW
• Body Style: SD Super Cab
• Body Code: T
